Key Features:
- Autopilot System: The Raymarine EV-100 Wheel Pilot is a comprehensive autopilot solution designed for wheel-steered sailboats.
- Displacement Capacity: Suitable for vessels with a maximum displacement of 7,500 kg (16,500 lbs).
- Installation: Engineered for straightforward cockpit installations, the system is compatible with most wheel types and includes a simple, robust clutch engagement mechanism.
- Networking: Utilizes SeaTalkNG/NMEA2000 for seamless integration with sailing instruments and chartplotters.
- Calibration: Features Evolution AI™, eliminating the need for complex setup or autopilot calibration.
Technical Specifications:

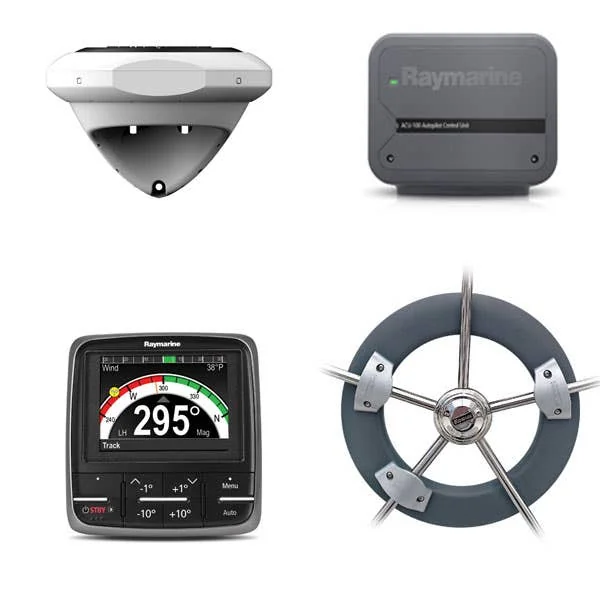

- EV-1 Sensor Core:
- Type: 9-axis sensor monitoring vessel motion in all three dimensions.
- Technology: Combines advanced solid-state sensors with the Evolution autopilot processor into a single housing.
- Installation: Mountable above or below deck; fully sealed enclosure meets IPX6 and IPX7 waterproofing standards.
- Accuracy: Delivers dynamic accuracy within 2 degrees under all conditions.
- Magnetic Compensation: Automatically compensates for onboard magnetic fields, ensuring reliable heading accuracy even in extreme latitudes.
- Data Output: Provides fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.
- p70s Autopilot Control Head:
- Display: 3.5-inch anti-glare screen with advanced LED backlighting for enhanced colors and contrast.
- Viewing Angle: Wide 160° viewing angles for improved visibility from various positions.
- User Interface: LightHouse user interface for intuitive operation.
- Power Consumption: Typically 132mA/1.6W, 27% less than previous models at equivalent brightness.
- Autopilot Modes Supported: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer.
- Connectivity: Supports SeaTalkNG/NMEA2000 and SeaTalk1 without the need for bridging.
- ACU-100 Actuator Control Unit:
- Function: Delivers reliable autopilot drive power and provides power to the SeaTalkNG bus.
- Compatibility: Designed for mechanical or hydraulic Evolution autopilot systems.
- Connectivity: Simple SeaTalkNG connectivity to the control head and ACU.
- Wheel Drive:
- Type: Fully enclosed wheel drive for easy installation and superb performance.
- Compatibility: Fits most types of sailboat wheels.
- Clutch Mechanism: Simple and robust clutch engagement mechanism.
- SeaTalkNG Wiring Kit:
- Components:
- 2 x SeaTalk Terminations
- 2 x SeaTalk T-connectors
- 1 x Power cable (0.4m)
- 1 x Main SeaTalk cable (5m)
- 1 x SeaTalk branch cable (0.4m)
- 1 x 5-pin SeaTalk connection block
Materials:
- Enclosures: Constructed with durable, fully sealed housings to meet IPX6 and IPX7 waterproofing standards.
- Cables: Includes SeaTalkNG wiring components for reliable connectivity.
Dimensions:
- EV-1 Sensor Core:
- Dimensions: Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)
- Weight: 0.6 kg (1.32 lbs)
Compatibility Information:
- Vessel Type: Designed for wheel-steered sailboats with a maximum displacement of 7,500 kg (16,500 lbs).
- Power Systems: Compatible with 12V DC power systems.
- Networking: Integrates with SeaTalkNG/NMEA2000 and SeaTalk1 networks.
