Raymarine - Axiom Pro 16 S Multifunction Display - E70483

Manufacturer: Raymarine
Experience superior marine navigation with the Raymarine Axiom Pro 16 S, featuring a vibrant 15.6-inch touchscreen.
Manufacturer part number: E70483
GTIN: 0723193822241
Vendor: Cabesto
Availability: In stock
€7194.00
i h

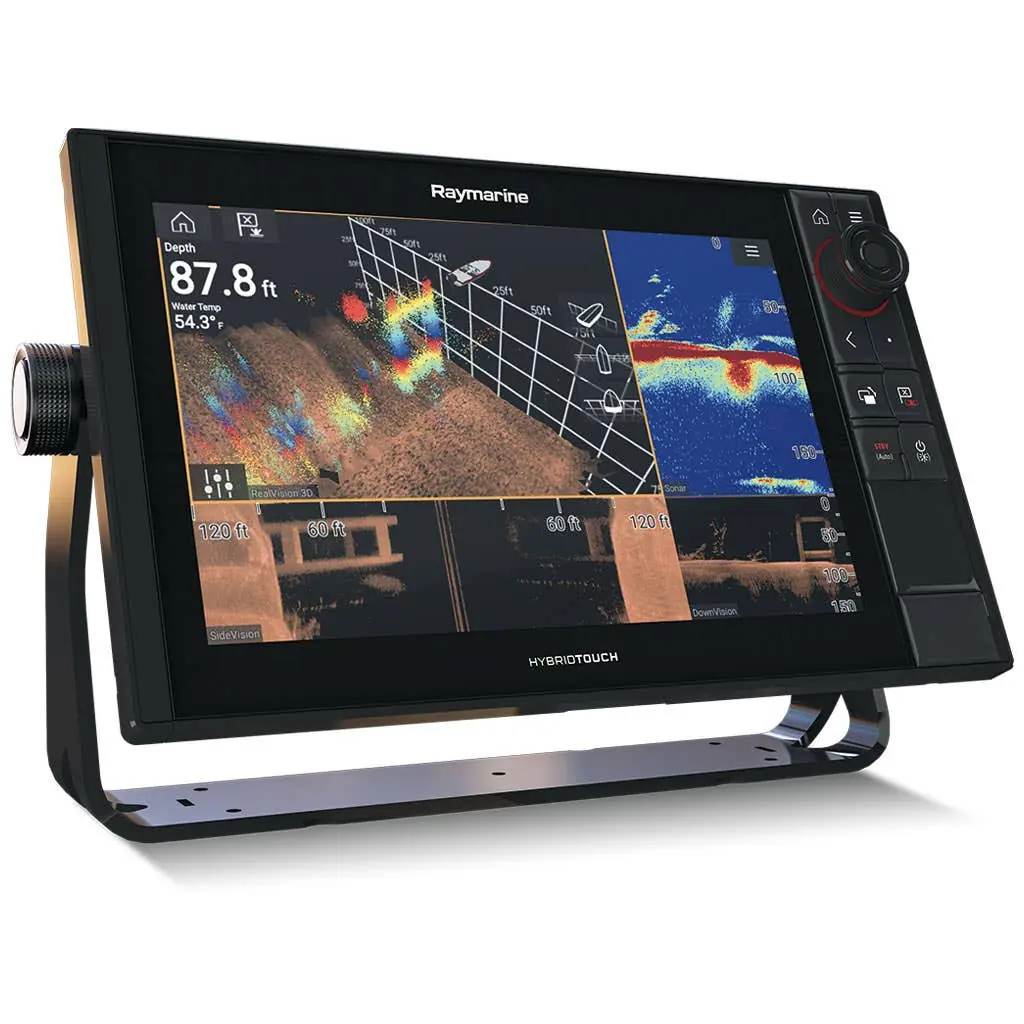

The Raymarine Axiom Pro 16 S is a high-performance multifunction display designed for marine navigation. It features a 15.6-inch optically bonded IPS LCD touchscreen with a resolution of 1920 x 1080 pixels, delivering clear and vibrant visuals. The display offers a brightness of 1,200 nits and a wide viewing angle of 88° in all directions, ensuring optimal visibility in various lighting conditions.

  • HybridTouch Control: Provides intuitive touch screen interaction complemented by keypad control for reliable operation in rough seas.
  • LightHouse Operating System: Offers a fast, fluid, and customizable interface tailored to individual navigation preferences.
  • Built-in CHIRP Sonar: Equipped with a single-channel CHIRP sonar module, delivering high-resolution images with improved target separation and bottom tracking.
  • Expandable Network: Supports integration with additional Axiom displays, Evolution autopilot, solid-state radar, and FLIR thermal night vision cameras.

Technical Specifications

  • Display Size: 15.6 inches
  • Display Resolution: 1920 x 1080 pixels
  • Display Type: IPS LCD
  • Brightness: 1,200 nits
  • Viewing Angle: 88° in all directions
  • Dimensions (H x W x D): 258 mm x 452.02 mm x 240.4 mm (10.16 in x 17.8 in x 9.46 in)
  • Weight: 2.04 kg (4.5 lbs)
  • Power Consumption: 31.44 W at 12 V DC
  • Operating Voltage Range: 8 V DC to 32 V DC
  • Operating Temperature: -25°C to +55°C (-13°F to 131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to 158°F)
  • Waterproof Rating: IPx6, IPx7
  • Connectivity: 2 RayNet (10/100/1,000 Mbits/s) Ethernet ports, 2 front-mounted MicroSDXC card slots, USB Micro B port, NMEA 0183 and NMEA 2000 connections, Bluetooth 4.0, Wi-Fi 802.11/b/g/n
  • Sonar Depth Range: 0.6 m (2 ft) to 274 m (900 ft)
  • GNSS Compatibility: GPS, Galileo, GLONASS, Beidou
  • Receiver IC Sensitivity: 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
  • Operating Frequency: 1574 MHz to 1605 MHz
  • Refresh Rate: 10 Hz
  • Time to First Fix from Cold Start: < 2 minutes

Materials

The Axiom Pro 16 S is constructed with durable materials suitable for marine environments, including a robust housing and optically bonded glass for the display.

Compatibility Information

The Axiom Pro 16 S is compatible with a range of Raymarine accessories, including Quantum radar, FLIR thermal cameras, Evolution autopilots, and various Raymarine instruments and cameras. It also supports integration with NMEA 0183 and NMEA 2000 networks, allowing connection to a wide array of marine electronics.
