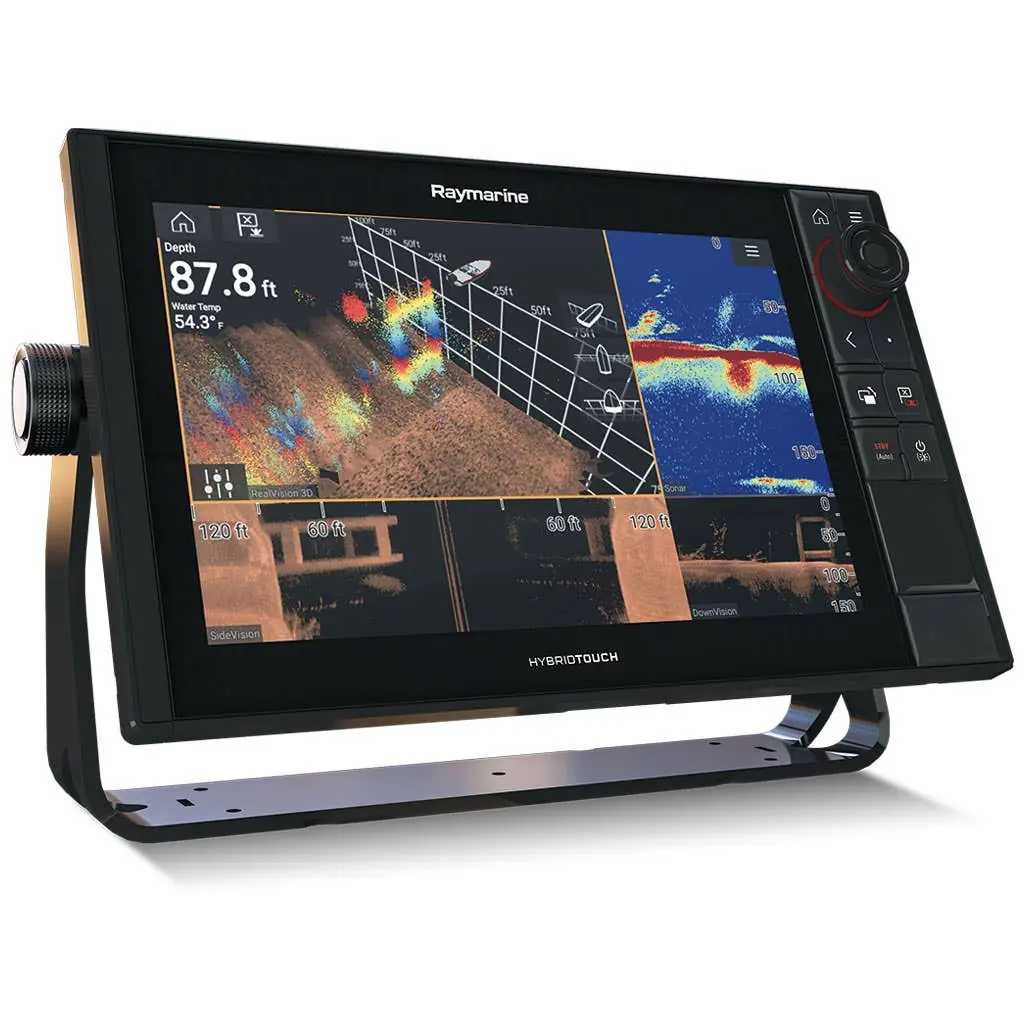

The Raymarine Axiom Pro 16 RVX is a cutting-edge multifunction display designed for marine navigation and fishing. It features a 15.6-inch HybridTouch LCD screen, offering both touch and button controls for versatile operation. The device integrates RealVision 3D sonar technology and a 1kW CHIRP sonar module, providing comprehensive imaging capabilities. Powered by a high-speed quad-core processor and the intuitive LightHouse operating system, it delivers a seamless and responsive user experience.
- RealVision 3D Sonar: Provides lifelike, three-dimensional imaging of underwater structures and fish, enhancing situational awareness.
- 1kW CHIRP Sonar: Delivers high-resolution sonar imaging with improved target separation and bottom tracking, even at high speeds.
- HybridTouch Control: Offers flexible operation through a combination of touch screen and physical buttons, suitable for various marine conditions.
- LightHouse Operating System: Features a fast, fluid, and easy-to-learn interface that can be personalized to suit individual boating styles.
- Expandable Network: Easily integrates with other Raymarine devices, including multiple Axiom displays, CHIRP radar, Evolution autopilot, and FLIR thermal night vision technology.
Technical Specifications
- Display: 15.6 inches, 1920 x 1080 Full HD, IPS LCD, 88° viewing angle, 1200 nits illumination, 1 to 16 touch points.
- Processor and Memory: Quad-core processor, 16GB Solid State storage, 2 front-mounted MicroSDXC card slots.
- Connectivity: 1 x USB Micro B, 2 x RayNet ports, 2 x NMEA 0183 input and 1 x output ports, DeviceNet connector, Bluetooth v4.0, Wi-Fi 802.11/b/g/n.
- Sonar: RealVision depth range from 0.6 m to 274 m, 1 kW depth range from 0.9 m to 914.4 m.
- Environmental: Operating temperature -25°C to +55°C, storage temperature -30°C to +70°C, waterproof rating IPx6, IPx7.
- GNSS (GPS): Position accuracy ≤ 15 meters, up to 28 satellites, refresh rate 10 Hz.
The Axiom Pro 16 RVX is constructed with high-quality materials to ensure durability and performance in marine environments. The device features an optically bonded IPS LCD screen for enhanced clarity and contrast. The housing is designed to withstand harsh marine conditions, with a waterproof rating of IPx6 and IPx7.
Dimensions
- Trunnion Mounted: Height 258 mm, Width 452.02 mm, Depth 240.4 mm.
- Surface/Flush Mounted: Height 222.8 mm, Width 358.03 mm, Depth 233.4 mm.
