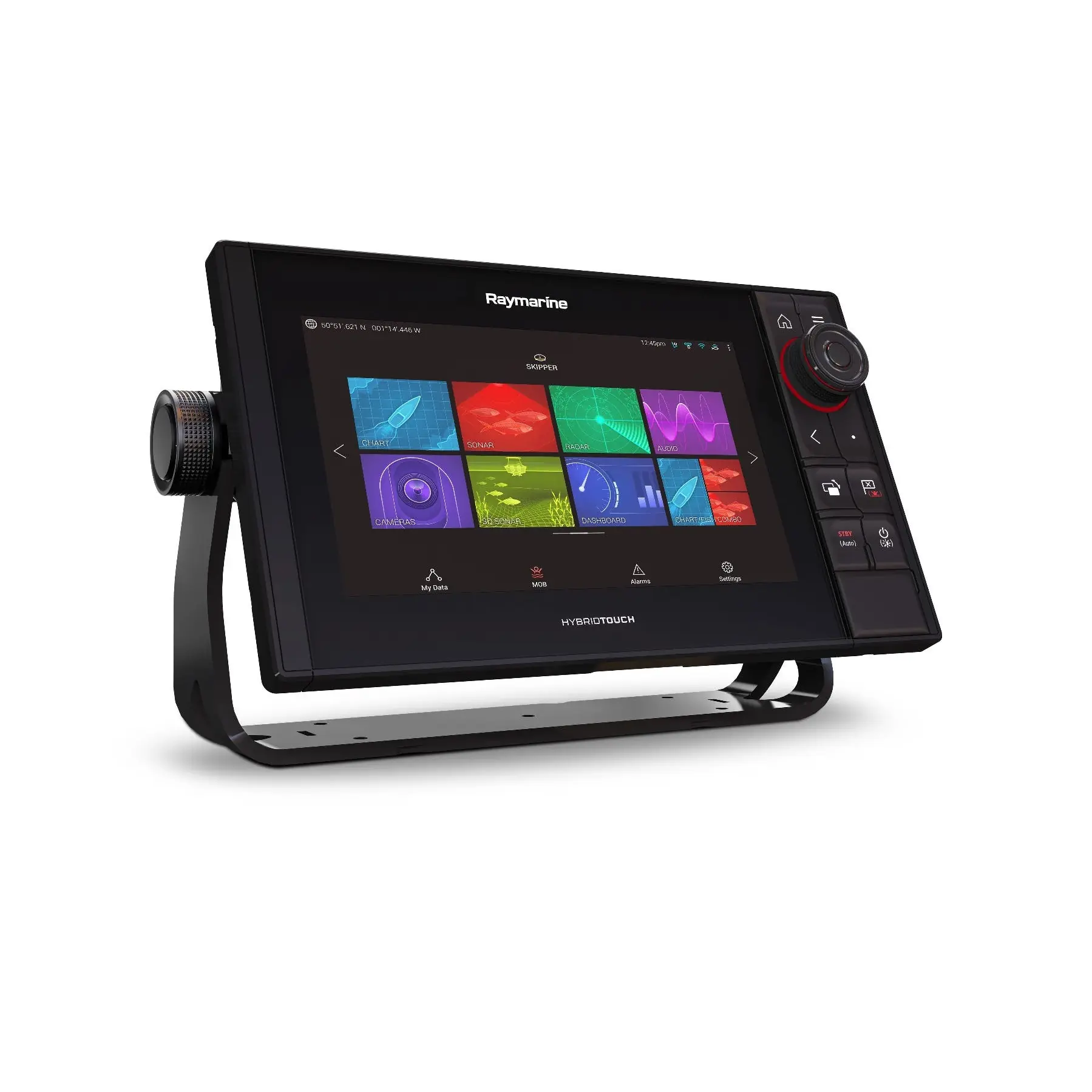

The Raymarine Axiom Pro 12 RVX is a high-performance multifunction display designed for mariners seeking advanced navigation and sonar capabilities. Featuring a 12.1-inch HybridTouch LCD screen, it offers both touch and button controls for versatile operation. The device integrates RealVision 3D and a 1kW CHIRP sonar module, delivering exceptional imaging and depth performance. Powered by a quad-core processor and the intuitive LightHouse operating system, the Axiom Pro 12 RVX ensures a fluid and responsive user experience.
- Display: 12.1-inch IPS LCD screen with a resolution of 1280 x 800 WXGA, providing clear and vibrant visuals.
- Sonar Capabilities:
- RealVision 3D: Offers lifelike 3D imaging of underwater structures and fish locations.
- 1kW CHIRP Sonar: Delivers high-resolution imaging with improved target separation and bottom tracking.
- DownVision: Provides near-photographic clarity of underwater structures.
- SideVision: Allows detailed imaging of both sides of the boat, enhancing situational awareness.
- Control Interface: HybridTouch™ technology enables operation via multi-touch screen, physical buttons, or a combination of both, catering to various user preferences.
- Operating System: LightHouse OS offers a fast, fluid, and easy-to-learn interface, customizable to individual boating styles.
- Connectivity:
- Networking: Two RayNet (10/100/1,000 Mbits/s) Ethernet ports for network expansion.
- NMEA 0183: Supports input and output at 4,800 or 38,400 baud rates.
- NMEA 2000: DeviceNet connector for integration with compatible devices.
- Wireless: Wi-Fi (802.11/b/g/n) and Bluetooth (v4.0) for wireless connectivity.
- Storage: 16GB internal solid-state memory with two front-mounted microSDXC card slots for external storage.
- Power: Operates on 12V or 24V DC with a power consumption of approximately 29.88W at full brightness.
- Environmental: Designed to withstand operating temperatures from -25°C to +55°C (-13°F to 131°F) and storage temperatures from -30°C to +70°C (-22°F to 158°F). Waterproof rating of IPx6 and IPx7 ensures durability in marine environments.
- Dimensions:
- Trunnion Mounted: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth: 233.4 mm (9.18 in)
- Surface/Flush Mounted: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth: 233.4 mm (9.18 in)
- Weight: Approximately 2.04 kg (4.5 lbs).
- Mounting Options: Supports both trunnion and surface/flush mounting configurations.
- Waterproof Rating: IPx6 and IPx7, ensuring protection against water ingress.
- Operating Temperature: -25°C to +55°C (-13°F to 131°F).
- Storage Temperature: -30°C to +70°C (-22°F to 158°F).
Constructed with high-quality marine-grade materials to ensure longevity and resistance to harsh marine environments.
The Axiom Pro 12 RVX is compatible with various Raymarine accessories, including CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more, allowing for an expanded navigation network.
