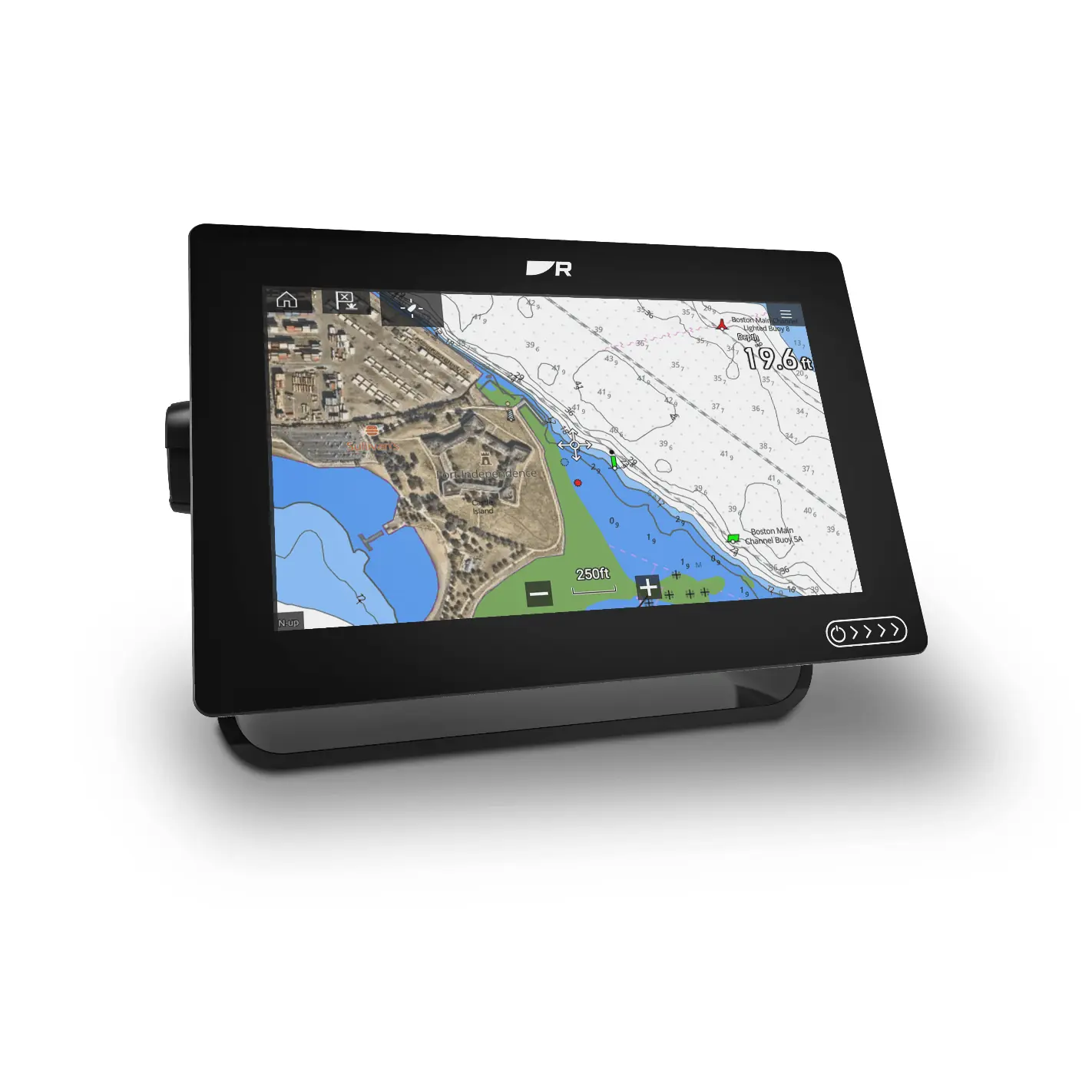

The Raymarine Axiom+ 9 is a high-performance multifunction GPS display designed to serve as a central navigation hub for your vessel. Equipped with a powerful quad-core processor, it offers industry-leading responsiveness and speed, enabling seamless chart redraws and augmented reality navigation. The 9-inch high-density IPS touchscreen provides enhanced visibility with 25% increased brightness and a new Day/Night color palette, ensuring clear readability in various lighting conditions. The HydroToughâ„¢ nano-coated, impact-resistant glass screen repels water, oil, and smudges, facilitating accurate touch controls even in challenging environments.
- High-Performance Processor: Quad-core processor for rapid chart redraws and smooth navigation.
- Enhanced Display: 9-inch high-density IPS touchscreen with 25% increased brightness and Day/Night color palette.
- HydroToughâ„¢ Screen: Nano-coated, impact-resistant glass that repels water, oil, and smudges.
- LightHouse 3 OS: Intuitive operating system with customizable interface and improved fonts and gauges.
- Augmented Reality: ClearCruiseâ„¢ technology for smarter navigation decisions.
- Connectivity: Built-in Wi-Fi and Bluetooth for seamless integration with Raymarine apps and accessories.
- Chart Compatibility: Supports LightHouse Charts, Navionics, and C-MAP.
- Networking: RayNet Ethernet and NMEA2000 for connecting multiple displays and expanding with accessories like Quantum radar, FLIR thermal cameras, and Evolution autopilot.
Technical Specifications:
- Display Size: 9.0 inches
- Display Resolution: 1280 x 720 (WXGA)
- Display Type: Multitouch with HydroToughâ„¢ rugged hydrophobic coating
- Brightness: 1,500 nits
- Viewing Angle: 85° Top, Bottom, Left, Right
- Dimensions (W x H x D): 244 x 158 x 77 mm (9.65 x 6.22 x 3.0 inches)
- Weight: 2.2 kg (5 lbs)
- Mounting Options: Surface, Flush, Trunnion
- Waterproof Rating: IPX6 / IPX7
- Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
- Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
- Power Supply: 12V DC (8V to 16V DC)
- Power Consumption (Full Brightness): 8.95 Watts
- GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 28 Channel
- Sonar Type (Built-in): None
- External Sonar Option: Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
- Radar: Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
- AIS: Yes - NMEA2000 compatible
- Autopilot Control: Yes - Evolution Autopilot
- Thermal Night Vision: Yes - FLIR AX8, M232, M300 Series, M400, M500
- Video / Camera: Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
- Weather: GRIB View - Free GRIB viewer and Theyr Ltd Subscription; SiriusXM - N. America Only
- Audio: NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
- Digital Switching: Yes - Empirbus & C-Zone compatible
- Remote Control: Yes - Optional RMK-10 (A80438)
Materials:
- Screen: HydroToughâ„¢ nano-coated, impact-resistant glass
- Housing: Durable marine-grade materials designed for harsh marine environments
Compatibility Information:
The Axiom+ 9 is compatible with a wide range of Raymarine accessories, including:
- Radar: Quantum, Digital, HD Colour / Super HD Colour, and Magnum Radars
- Sonar: CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
- Thermal Cameras: FLIR AX8, M232, M300 Series, M400, M500
- Autopilot: Evolution Autopilot
- Audio Systems: NMEA2000 compatible marine audio systems like Rockford Fosgate
- Cameras: CAM210IP, CAM220IP (Up to 10 IP network cameras)
- Digital Switching: Empirbus & C-Zone
