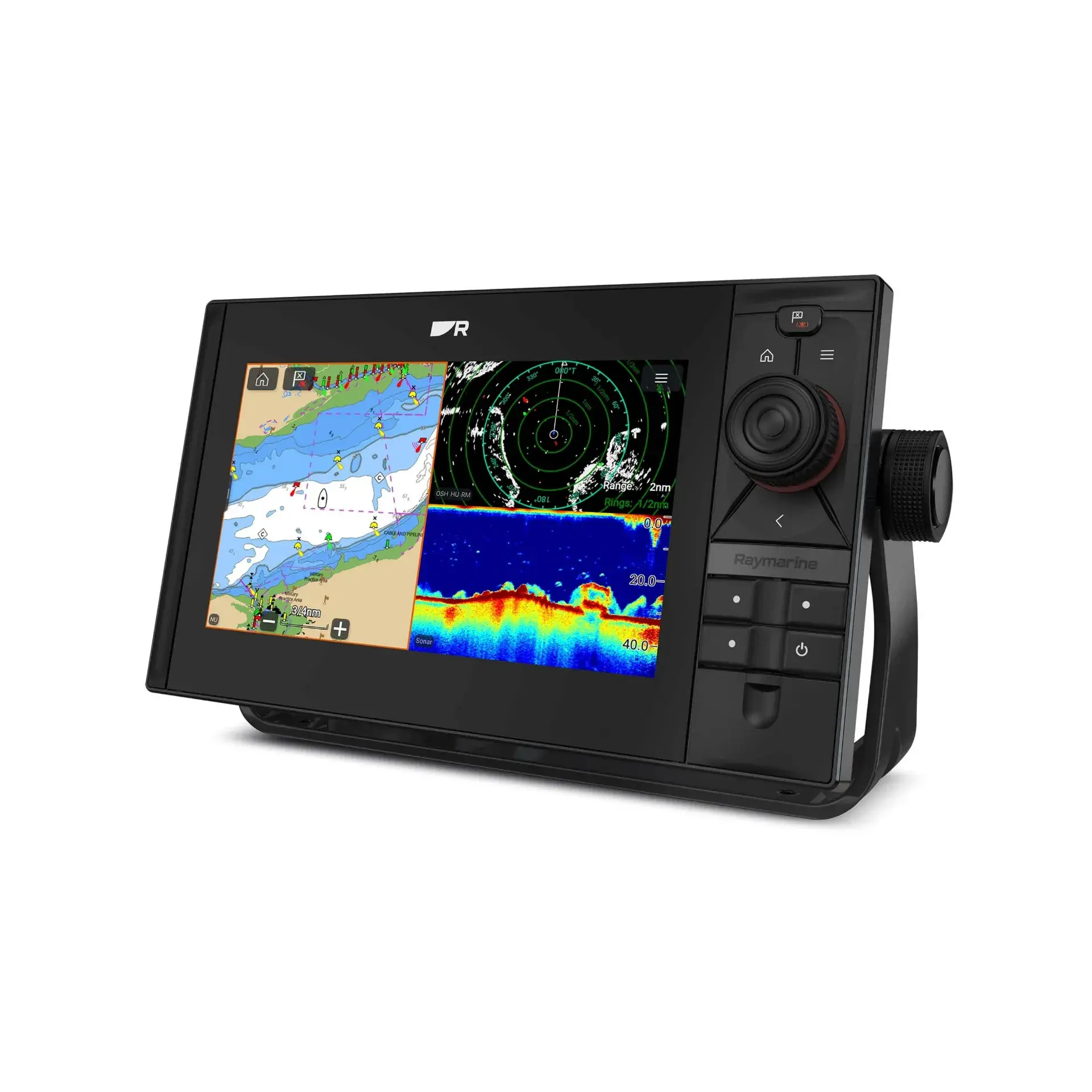

Raymarine - Axiom 2 Pro 9 S Chartplotter - E70653

Manufacturer: Raymarine
Experience advanced navigation and sonar with the Axiom 2 Pro 9 S chartplotter, designed for optimal boating performance.
Manufacturer part number: E70653
GTIN: 0723193843512
Vendor: Cabesto
Availability: In stock
€3054.00
i h

The Axiom 2 Pro 9 S is a multifunctional chartplotter designed to enhance your boating experience with advanced navigation and sonar capabilities. This all-in-one system combines a high-resolution touchscreen with integrated CHIRP sonar, providing accurate depth readings and fish detection.

  • 9-inch HybridTouch™ Display: Offers intuitive control through both touchscreen and keypad, ensuring ease of use in various sea conditions.
  • Integrated Single-Channel CHIRP Sonar: Delivers precise depth soundings and underwater imagery, enhancing fishing and navigation.
  • Radar Compatibility: Supports Quantum 2 and Cyclone radars for Doppler target tracking and radar/chart overlay, improving situational awareness.
  • Chart Compatibility: Compatible with LightHouse charts, providing maximum readability and intuitive navigation.
  • Camera Integration: Supports FLIR thermal cameras and AR200 for ClearCruise augmented reality, overlaying AIS, waypoints, and chart objects on high-definition video.
  • Engine Integration: Compatible with NMEA 2000-compatible engines, including advanced integration with Mercury SmartCraft and Yamaha Command Link systems.

Technical Specifications:

  • Display:
    • Size: 9.0 inches diagonal
    • Resolution: 1280 x 720 HD
    • Type: IPS (In-Plane Switching)
    • Brightness: 1300 nits
    • Viewing Angle: 88° in all directions
  • Sonar:
    • Channels: Single-channel CHIRP conical sonar
    • Depth Range: 0.6 m (2 ft) to 274 m (900 ft), depending on water conditions
  • Connectivity:
    • Ethernet: 2 RayNet (10/100/1,000 Mbits/s) ports
    • NMEA 2000: DeviceNet connector
    • Wi-Fi: Multiband - 2.4GHz and 5GHz 802.11b/g/n
    • Bluetooth: v4.0
    • USB: Micro B
    • HDMI: Out Micro connector type D
    • Analog Video: BNC input (on power cable)
    • Analog Audio: RCA connectors via power cable
  • Power:
    • Consumption at 12 V DC: 33.12 W
    • Operating Voltage Range: 8 V DC to 32 V DC
    • Nominal Supply Voltage: 12 V DC / 24 V DC
    • Off Current at 12 V DC: 11 mA (0.13 W)
    • Off Current at 24 V DC: 18 mA (0.43 W)
  • GNSS (GPS):
    • Position Accuracy: ≤ 15 meters without SBAS, ≤ 5 meters with SBAS
    • Satellite Compatibility: GPS, Galileo, GLONASS, Beidou
    • Channels: Up to 28 satellites simultaneously
    • Refresh Rate: 10 Hz
    • Time to First Fix from Cold Start: < 2 minutes
  • Environmental:
    • Operating Temperature: -25°C to +55°C (-13°F to 131°F)
    • Storage Temperature: -30°C to +70°C (-22°F to 158°F)
    • Relative Humidity: Up to 93% at 40°C (104°F)
    • Waterproof Rating: IPx6, IPx7
  • Materials: Constructed with durable materials suitable for marine environments, ensuring longevity and reliability.
  • Dimensions:
    • Trunnion Mounted:
      • Height: 186.2 mm (7.33 in)
      • Width: 329.5 mm (12.97 in)
      • Depth (including cables): 234.9 mm (9.25 in)
    • Surface/Flush Mounted:
      • Height: 173.79 mm (6.84 in)
      • Width: 299.32 mm (11.78 in)
      • Depth (including cables): 234.9 mm (9.25 in)
