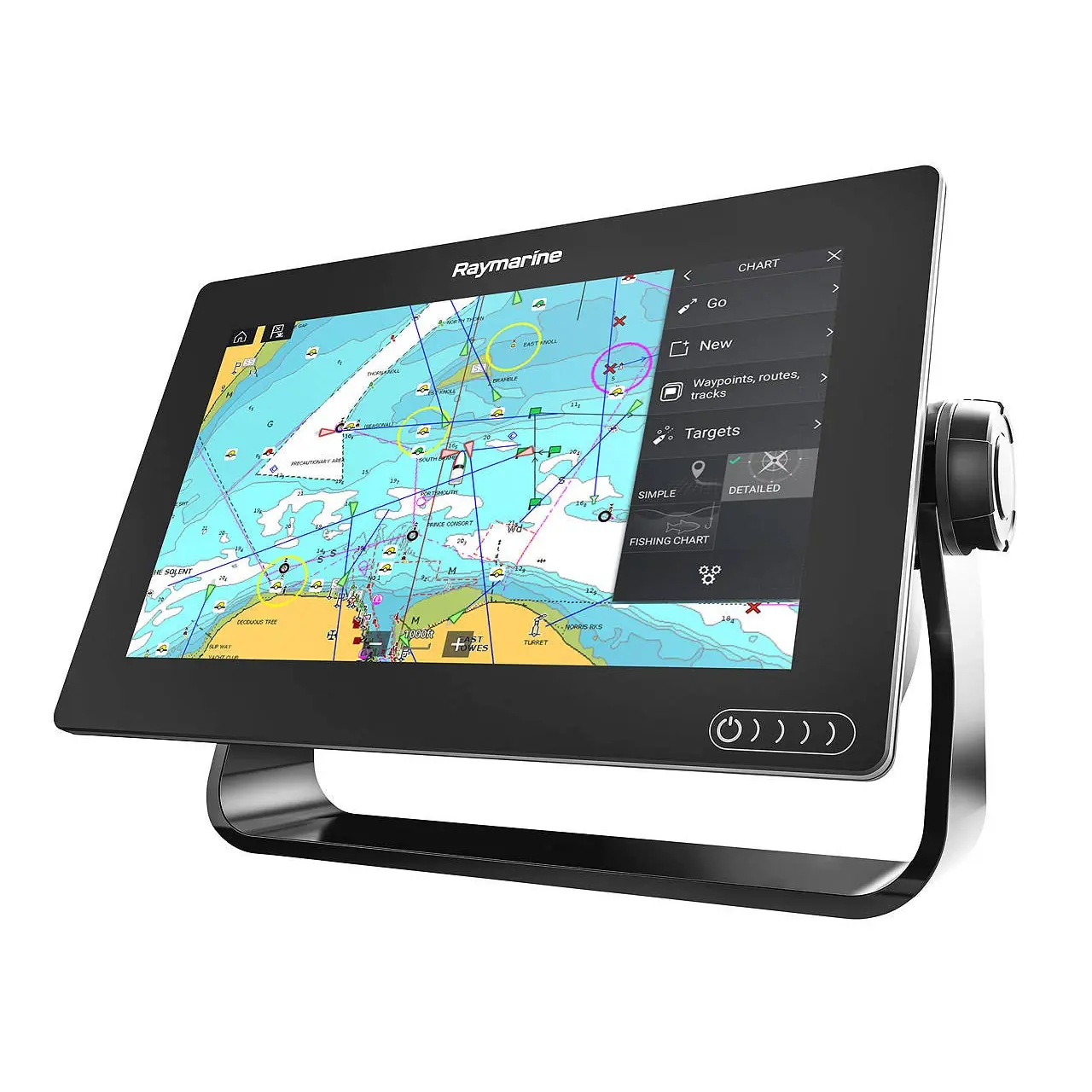

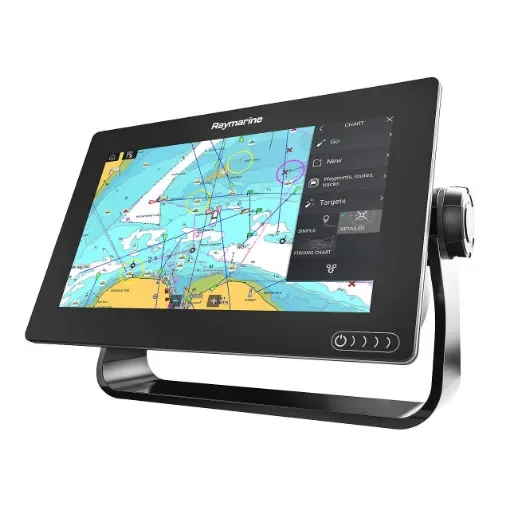

Raymarine - Axiom+ 12 RV Multifunction Display with RealVision 3D - E70639

The Raymarine Axiom+ 12 RV is a cutting-edge multifunction display designed for avid anglers and boating enthusiasts. This all-in-one chartplotter and fishfinder offers a suite of advanced features to enhance your on-water experience.

• RealVision 3D Sonar Technology: Provides a gyro-stabilized, GPS-locked bathymetric model of the bottom and water column, delivering high-resolution 3D imaging for precise underwater mapping.
• Built-in 600W Digital Sonar: Operates at 50 kHz and 200 kHz frequencies, supporting CHIRP conical sonar, DownVision, SideVision, and RealVision 3D sonar channels.
• HydroTough Nano-Coated Display: Features an impact-resistant screen that repels water, oil, and smudges, ensuring touch control accuracy even on wet screens.
• Enhanced Display Brightness: Offers a 25% brighter display at up to 1,800 nits, providing powerful visibility in bright light conditions.
• LightHouse Operating System: Runs on Raymarine's most powerful and user-friendly operating system, facilitating intuitive navigation and fishfinding capabilities.

Technical Specifications

• Display Size: 12.1 inches
• Resolution: 1280 x 800 WXGA (HD)
• Display Type: Multi-touch IPS Optically Bonded LCD
• Brightness: 1,200 nits
• Viewing Angle: Top 88° / Bottom 88° / Left 88° / Right 88°
• Dimensions: 12 3/8" W x 8 9/16" H x 3" D
• Weight: 6.25 lbs (approximately 2.83 kg)
• Mounting Options: Top, Flush, Front, Bracket
• Waterproof Rating: IPX6 / IPX7
• Operating Voltage: 12V DC (8 V to 16 VDC)
• Power Consumption: 18.96 W
• GPS Position Accuracy: Without SBAS: ≤ 15 meters 95% of the time; With SBAS: ≤ 5 meters 95% of the time
• Environmental Operating Temperature: -25°C to +55°C (-13°F to 131°F)
• Environmental Storage Temperature: -30°C to +70°C (-22°F to 158°F)
• Relative Humidity: Up to 93% @ 40°C (104°F)
• NMEA 2000 Load Equivalency Number (LEN): 1

Materials

• Display Coating: HydroTough Nano-Coated
• Mounting Hardware: Includes trunnion bracket, trunnion knobs, suncover, panel mount gasket, rear mounting brackets, M5 x 58 threaded studs, and M5 thumb nuts

Compatibility Information

• Transducer Compatibility: Compatible with various RealVision 3D transducers, including RV-100, RV-200, RV-212, RV-220, RV-300, and RV-400 series
• Chart Compatibility: Supports LightHouse Charts and Navionics+ charts
