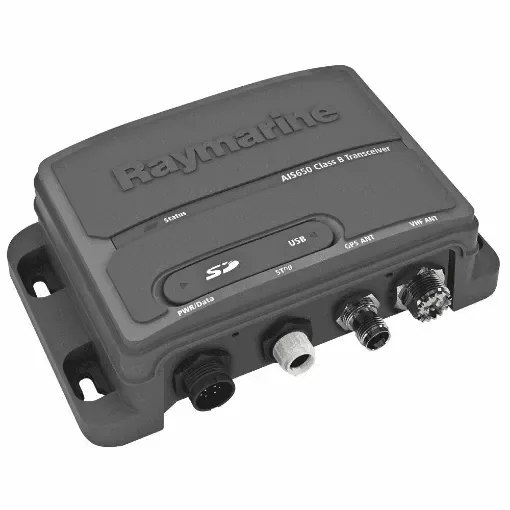

Raymarine - AIS650 Class B Transceiver - E32158

Manufacturer: Raymarine
Enhance maritime safety with the Raymarine AIS650, a Class B transceiver for reliable navigation data exchange.
Manufacturer part number: E32158
GTIN: 091975010651
Vendor: Cabesto
Availability: In stock
€856.00
i h

The Raymarine AIS650 is a Class B Automatic Identification System (AIS) transceiver designed to enhance maritime safety by enabling vessels to transmit and receive navigation data. Operating within the VHF maritime band, the AIS650 facilitates wireless exchange of information such as vessel name, course, speed, and current navigation status between ships and shore-side traffic monitoring centers.

  • Dual-Channel Receivers: Monitors both Class A and Class B AIS transmissions for comprehensive vessel tracking.
  • Dedicated GPS Receiver: Equipped with a 50-channel RAIM-compliant GPS receiver for superior accuracy.
  • Silent Mode: Offers hardware and software-selectable Silent Mode, allowing the AIS transmitter to be turned off for privacy or security while still receiving data from other vessels.
  • SeaTalkNG Networking: Facilitates seamless integration with Raymarine C Series Widescreen, E Series Widescreen, and G Series systems.
  • USB 2.0 Port: Provides plug-and-play connection for setup and diagnostics.
  • SD Card Slot: Allows recording of AIS data for accident reconstruction or investigations.
  • Built-in NMEA Multiplexer: Simplifies integration with legacy multifunction displays, VHF radios, and third-party devices.

Technical Specifications

  • Operating Voltage Range: 9.6 V to 31.2 V DC
  • Power Consumption: Average: <3W; Peak: 2A
  • Operating Frequency Range: 156.025 MHz to 162.025 MHz
  • Channel Spacing: 25 kHz
  • Receiver Sensitivity: –107 dBm
  • Dimensions: 167 mm (W) x 96 mm (H) x 54 mm (D)
  • Weight: 285 grams
  • Ingress Protection Rating: IPX2
  • Operating Temperature Range: –15°C to +55°C (5°F to 131°F)
  • Storage Temperature Range: –20°C to +75°C (–4°F to 167°F)
  • Humidity: Up to 93% at 40°C (104°F)
  • Nominal Supply Voltage: 12 V to 24 V DC
  • Fuse Rating: 5 A
  • NMEA 2000 Load Equivalency Number (LEN): 1
  • Connectors: VHF Antenna: SO-239 co-axial connector, GPS Antenna: TNC co-axial connector, SeaTalkNG, NMEA 0183 High-Speed (HS): Stripped wires, NMEA 0183 Low-Speed (LS): Stripped wires, Power: Stripped wires, AIS Silent: Stripped wires, SD Card, USB: NMEA 0183

The AIS650 features a robust, waterproof (IPX2) housing designed for easy installation.

Compatibility Information

The AIS650 is compatible with Raymarine multifunction displays, including the C Series Widescreen, E Series Widescreen, and G Series systems.
