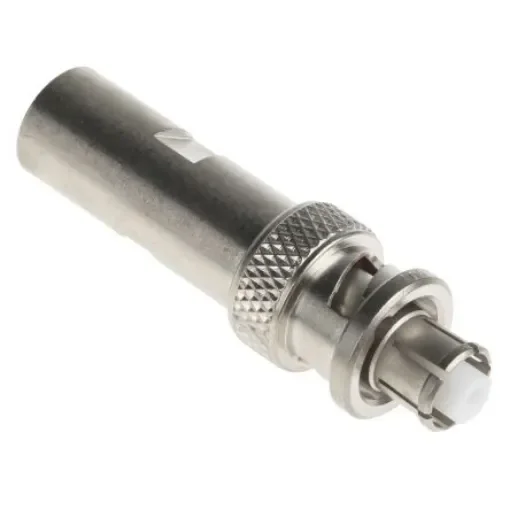

Radiall SHV Series, Plug Cable Mount BNC Connector, 50O, Clamp Termination, Straight Body - R317005000
High voltage Radiall SHV BNC connector with 50 Ohm impedance and clamp termination for reliable performance.
Manufacturer part number: R317005000
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Impedance = 50O
Termination Method = Clamp
Cable Type = RG142, RG58
Bulkhead = No
Operating Frequency = 0 to 2GHz
Body Plating = Nickel
Series = SHV
Radiall 50 Ohm SHV RF Coaxial Cable Clamp Plug Connectors. 50 Ohm SHV safe high voltage RF coaxial straight cable plugs with bayonet fixing, cable clamp termination, nickel plated brass body and gold plated center contact. These 50 Ohm SHV RF coax cable plugs have a test voltage of 10000 Vdc when unmated and a test voltage of 12000 Vdc when mated. The following RF coaxial cables can be used with these 50 Ohm SHV RF coaxial plugs: RG142 and RG58. These plugs are not intermateable with the BNC or BNC.HT series
