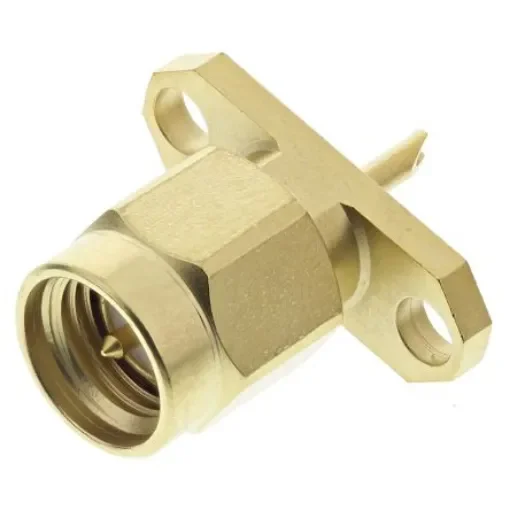

Radiall, Plug Panel Mount SMA Connector, 50O, Solder Termination, Straight Body - R125483000W
High-performance Radiall SMA connector for panel mounting with solder termination.
Manufacturer part number: R125483000W
GTIN: 5059045541585
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coaxial Connector Type = SMA Connector
Mounting Type = Panel Mount
Impedance = 50O
Termination Method = Solder
Body Orientation = Straight
Bulkhead = No
Operating Frequency = 0 to 18GHz
Body Plating = Gold°C
Maximum Operating Temperature = +165°C
Contact Material = Brass
Contact Plating = Gold over Nickel
SMA male flange sockets. SMA male sockets with full square or stub flange. These sockets are designed to be panel mounted using four mounting holes (screws not provided). Solder connection. These connectors offer a high level of performance and may be used for all high frequency applications.
