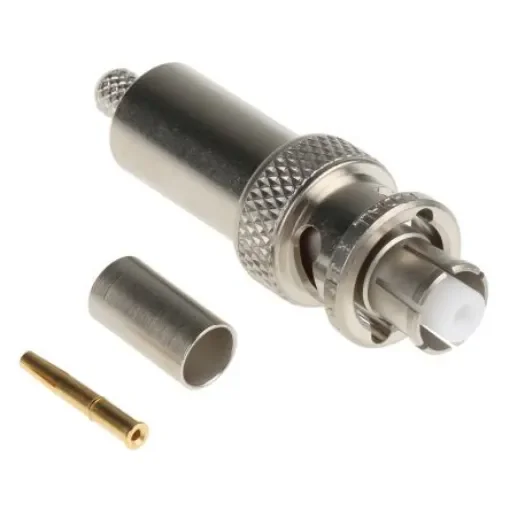

Radiall, Plug Cable Mount SHV Connector, 50O, Crimp Termination, Straight Body - R317072000
Securely connect with Radiall's 50 Ohm SHV plug, designed for high voltage applications.
Manufacturer part number: R317072000
GTIN: 5059045902980
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Gender = Male
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Crimp
Body Orientation = Straight
Cable Type = KX15, RG141, RG58
Operating Frequency = 2GHz
Body Plating = Nickel
Contact Material = Brass
Contact Plating = Gold
Mating Type = Bayonet
These plugs are not intermateable with the BNC or BNC.HT series. Radiall 50 Ohm SHV RF Coaxial Cable Crimp Plug Connectors. From Radiall, this 50 Ohm SHV safe high voltage RF coaxial cable plug has a bayonet fixing for secure mating and a convenient crimp termination. With a nickel plated brass body and a recessed gold plated centre contact, the connectors are both robust and safe. These 50 Ohm SHV RF coax cable plugs have a test voltage of 10000 V dc when unmated and a test voltage of 12000 V dc when mated. The following RF coaxial cables can be used with these 50 Ohm SHV RF coaxial plugs:. KX15 RG141 RG58
