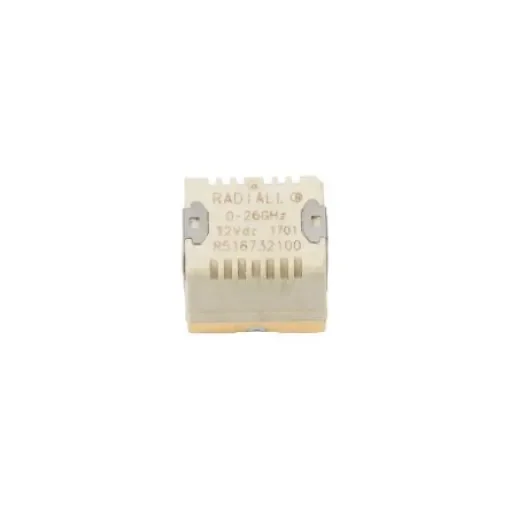

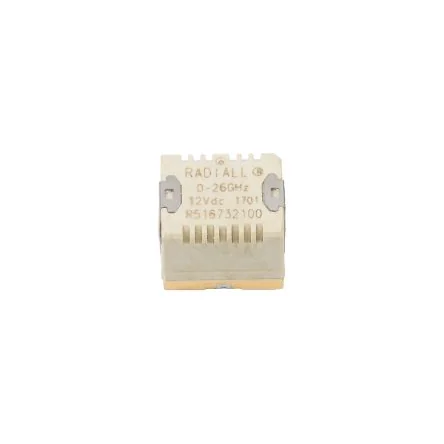

Radiall PCB Mount High Frequency Relay, 12V dc Coil, 50O Impedance, 8GHz Max. Coil Freq., SPDT - R516332100
High frequency PCB mount relay with 12V coil, ideal for compact applications.
Manufacturer part number: R516332100
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Coil Frequency = 8GHz
Relay Type = HF RelayO
Insertion Loss = 0.5 dB @ 8 GHz
Isolation = 40 dB @ 8 GHz
VSWR Voltage Standing Wave Ratio = 1.4 @ 8 GHz
Impedance = 50O
Contact Configuration = SPDT
Coil Voltage = 12V dc
Mounting Type = PCB Mount
Latching = Yes
Coil Power = 5W
Contact Material = Copper
Relay Switching Classification = General Purpose Relay°C
To extend the frequency range limits of SMT switches, Radiall merged the proven RAMSES concept with SLIM LINE technology. The Quartz series, which is an new evolution of Radiall’s previous SMT relay and can work up to 26.5GHz with a typical operating life of 5 million cycles. These surface mount relays are perfect for high frequency applications where space is limited.FULL SMT TECHNOLOGY COMPATIBLE High frequency High life span High repeatability High power applications
