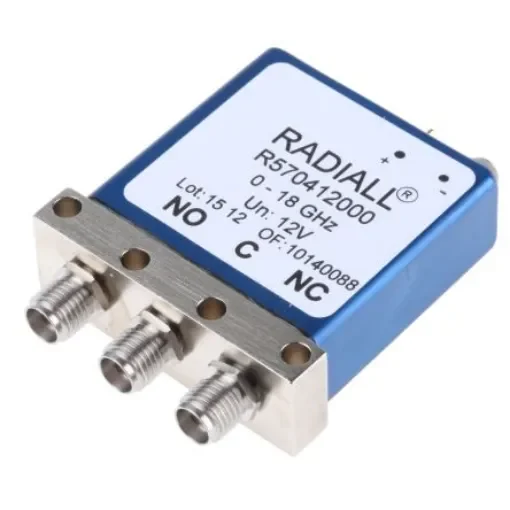

Radiall PCB Mount High Frequency Relay, 12V Coil, 50O Impedance, 18GHz Max. Coil Freq., SPDT - R570412000
Reliable Radiall high frequency relay with 12V coil and 18GHz max frequency for optimal performance.
Manufacturer part number: R570412000
GTIN: 5059045969402
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Coil Frequency = 18GHz
Relay Type = HF Relay
Insertion Loss = 0.50 dB @ 18 GHz
Isolation = 60 dB @ 18 GHz
VSWR Voltage Standing Wave Ratio = 1.40 dB
Impedance = 50O
Contact Configuration = SPDT
Coil Voltage = 12V
Mounting Type = PCB Mount
Coil Power = 100W
Height = 12.8mm
Radiall Failsafe Switch RelayThe Radiall Failsafe series SPDT high-frequency relay is actuated with 12VDC coil voltage at a frequency of 18GHz. It offers excellent reliability, high-performance and operating frequencies from DC to 50 GHz.Features and BenefitsImpedance is 50ohms Operating temperature ranging between -40°C and 85°C Terminal type is PCB-pin Based on the RAMSES modular concept Excellent RF performance Isolation: 50dB at 50 GHz Insertion Loss: 1.10 dB at 50 GHzCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
