Radiall, Jack Panel Mount N Connector, 50O, Clamp Termination, Straight Body - R161256000W
Reliable N Connector for panel mounting with clamp termination, ensuring excellent HF performance.
Manufacturer part number: R161256000W
GTIN: 5059045674962
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coaxial Connector Type = N Connector
Mounting Type = Panel Mount
Impedance = 50O
Termination Method = Clamp
Body Orientation = Straight
Cable Type = RG141, RG142, RG223, RG400, RG58
Operating Frequency = 0 to 11GHz
Minimum Operating Temperature = -55°C
Maximum Operating Temperature = +155°C
Contact Material = Beryllium Copper
Contact Plating = Gold over Nickel

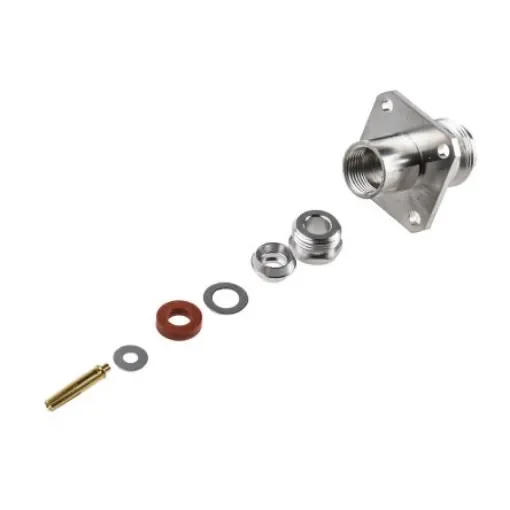

Straight N plugs with square flanges. Straight, female N plugs for fitting with cable gland, equipped with a square flange for panel-mounting. The screw coupling on this connector ensures good HF performance. High permissible power. Mounted using 4 screws - not supplied.
