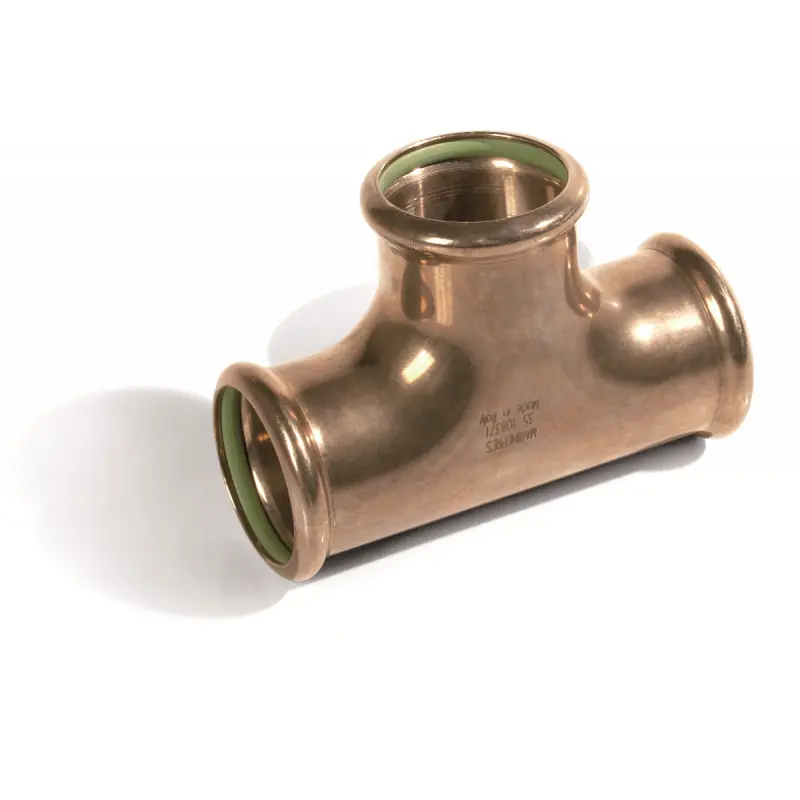

The MarinePRES Cupronickel Press-Fitting System by Raccorderie Metalliche SpA is engineered for superior performance in saline and corrosive environments. Constructed from a 90/10 cupronickel alloy (CuNi10Fe1.6Mn), this system offers exceptional resistance to corrosion, making it ideal for marine applications.
- Corrosion Resistance: The cupronickel material ensures longevity and reliability in harsh marine conditions.
- Press-Fitting Technology: Utilizes a pressing system that eliminates the need for welding or adhesives, reducing installation time and enhancing safety.
- Green FKM O-Ring: Each fitting is equipped with a green FKM (fluorocarbon) O-ring, capable of withstanding temperatures from -20°C to +220°C and pressures up to 16 bar.
Technical Specifications:
- Material: CuNi10Fe1.6Mn (90/10 cupronickel alloy)
- Pipe Sizes: Available in diameters from 15 mm to 108 mm, with wall thicknesses ranging from 1.0 mm to 2.5 mm, depending on the pipe size.
- Design Pressure: 16 bar
- Design Temperature: Dependent on the sealing material used
Materials:
- Fittings: Made from 90/10 cupronickel alloy (CuNi10Fe1.6Mn)
- O-Rings: Green FKM (fluorocarbon)
Dimensions:
- Pipe Sizes: 15 mm x 1.0 mm, 18 mm x 1.0 mm, 22 mm x 1.0 mm, 28 mm x 1.5 mm, 35 mm x 1.5 mm, 42 mm x 1.5 mm, 54 mm x 1.5 mm, 76.1 mm x 2.0 mm, 88.9 mm x 2.0 mm, 108 mm x 2.5 mm
Compatibility Information: The MarinePRES system is compatible with various applications, including brackish water installations, charged and wastewater installations, heating installations, air conditioning installations, solar thermal installations, compressed air installations, fire protection installations, and water treatment installations.
