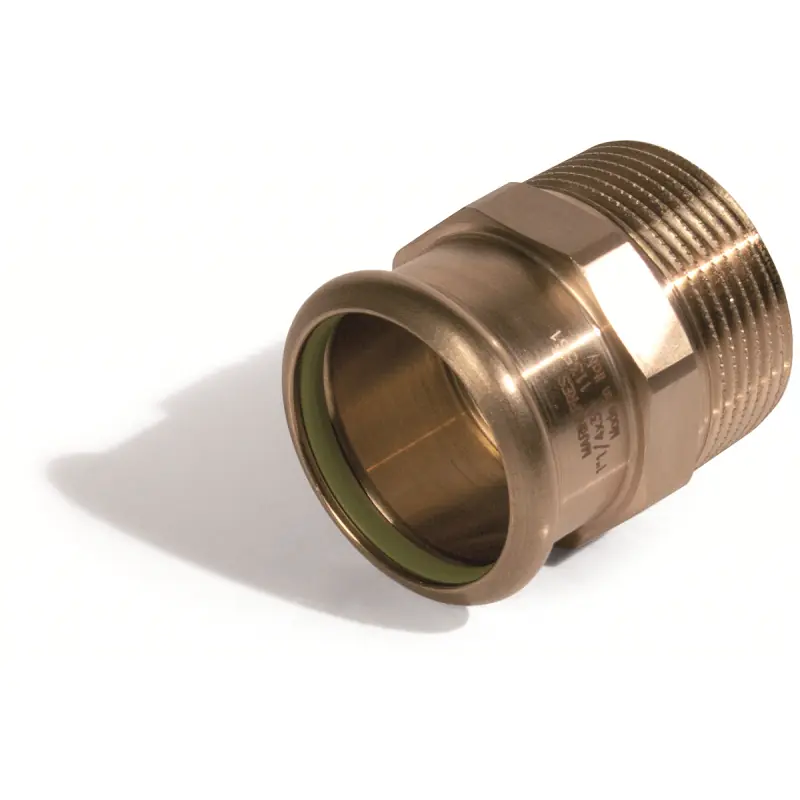

The MarinePRES Cupronickel 90/10 Straight Male Union Connector is a high-quality press-fit fitting designed for various marine and industrial applications. Manufactured by Raccorderie Metalliche SpA, this fitting is part of the MarinePRES system, which utilizes a special copper/nickel alloy known for its exceptional resistance to corrosion in saline environments.
- Material: Cupronickel 90/10 (CuNi10Fe1.6Mn)
- O-Ring: Green FKM (Fluorocarbon) O-Ring
- Temperature Range: -20°C to +220°C
- Maximum Pressure: 16 bar
- Certifications: RINA, Lloyd's Register, Bureau Veritas, ABS
Technical Specifications:
- Dimensions: Available in various sizes, including 15mm x 1/2”, 18mm x 1/2”, 22mm x 3/4”, 28mm x 1”, 35mm x 1”1/4, 42mm x 1”1/2, and 54mm x 2”
- Pressure Rating: Suitable for systems operating up to 16 bar
- Temperature Rating: Effective within a temperature range of -20°C to +220°C
Materials:
- Fitting Body: Cupronickel 90/10 (CuNi10Fe1.6Mn)
- O-Ring: Green FKM (Fluorocarbon)
Compatibility Information:
The MarinePRES system is compatible with a range of pressing machines approved for use with the system, ensuring a reliable and secure connection.
