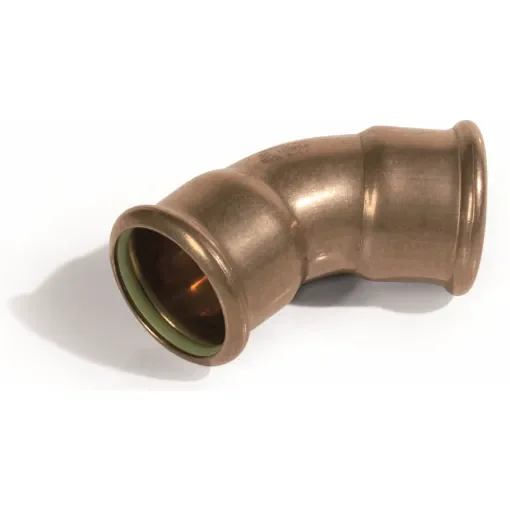

The MarinePRES Cupronickel 45° Elbow Coupling is a high-quality press-fitting component designed for marine and industrial applications, particularly in environments exposed to saline and corrosive conditions. Manufactured by Raccorderie Metalliche SpA, this fitting is part of the MarinePRES system, which utilizes a special copper/nickel alloy known for its exceptional resistance to corrosion.
- Corrosion Resistance: Constructed from CuNi10Fe1.6Mn (90/10 cupronickel alloy), offering superior durability in saline and corrosive environments.
- Press-Fitting System: Utilizes a press-fitting mechanism that ensures a secure and leak-proof connection without the need for welding or threading.
- Green FKM O-Ring: Equipped with a green FKM (fluorocarbon) O-ring, capable of withstanding temperatures from -20°C to +220°C and pressures up to 16 bar, ensuring a reliable seal.
Technical Specifications:
- Material: CuNi10Fe1.6Mn (90/10 cupronickel alloy)
- O-Ring Material: Green FKM (fluorocarbon)
- Temperature Range: -20°C to +220°C
- Maximum Pressure: 16 bar
- Pipe Sizes: Compatible with pipes ranging from 15 mm to 108 mm in diameter.
Compatibility Information:
This fitting is designed to be used with MarinePRES cupronickel pipes and is suitable for various applications, including:
- Brackish water installations
- Charged and wastewater installations
- Heating installations
- Air conditioning installations
- Solar thermal installations
- Compressed air installations
- Fire protection installations
- Water treatment installations
