Key Features:
- Material: Cupronickel 90/10 (CuNi10Fe1.6Mn)

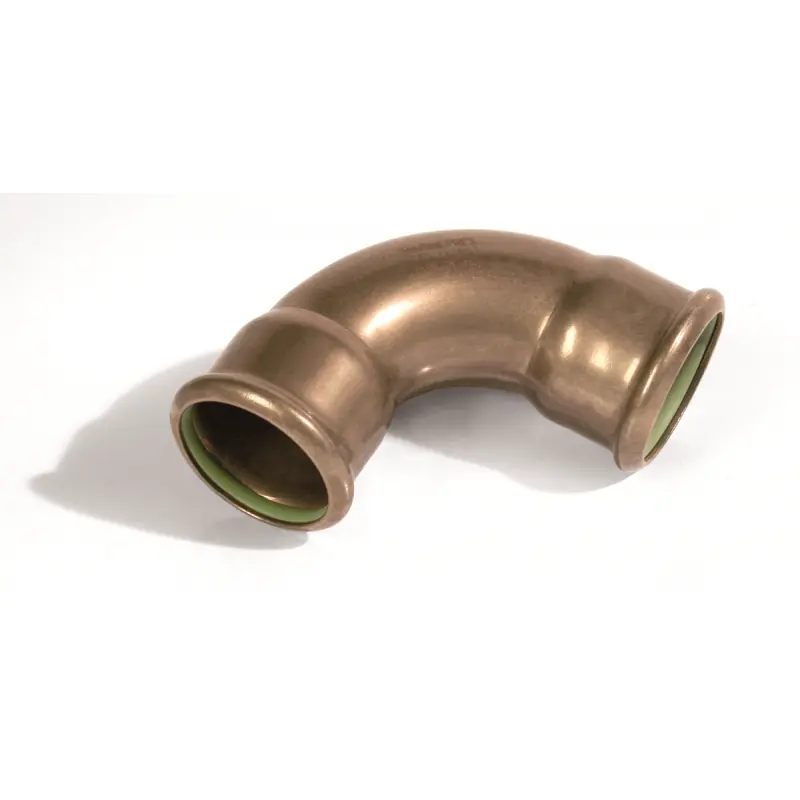

- Design: 90° Female/Female Elbow
- Press Fitting System: marinePRES
- O-Ring: Green FKM (Fluorocarbon Rubber)
- Temperature Range: -20°C to +220°C
- Maximum Pressure: 16 bar
- Certifications: RINA, Lloyd's Register, Bureau Veritas, ABS
Technical Specifications:
- Material Composition: Cupronickel 90/10 (CuNi10Fe1.6Mn)
- Temperature Range: -20°C to +220°C
- Maximum Pressure: 16 bar
- O-Ring Material: Green FKM
- Press Fitting System: marinePRES
Materials:
- Body: Cupronickel 90/10 (CuNi10Fe1.6Mn)
- O-Ring: Green FKM
Compatibility Information:
This fitting is compatible with marinePRES press fitting systems and is suitable for use with standard CuNi10Fe1.6Mn pipes.
