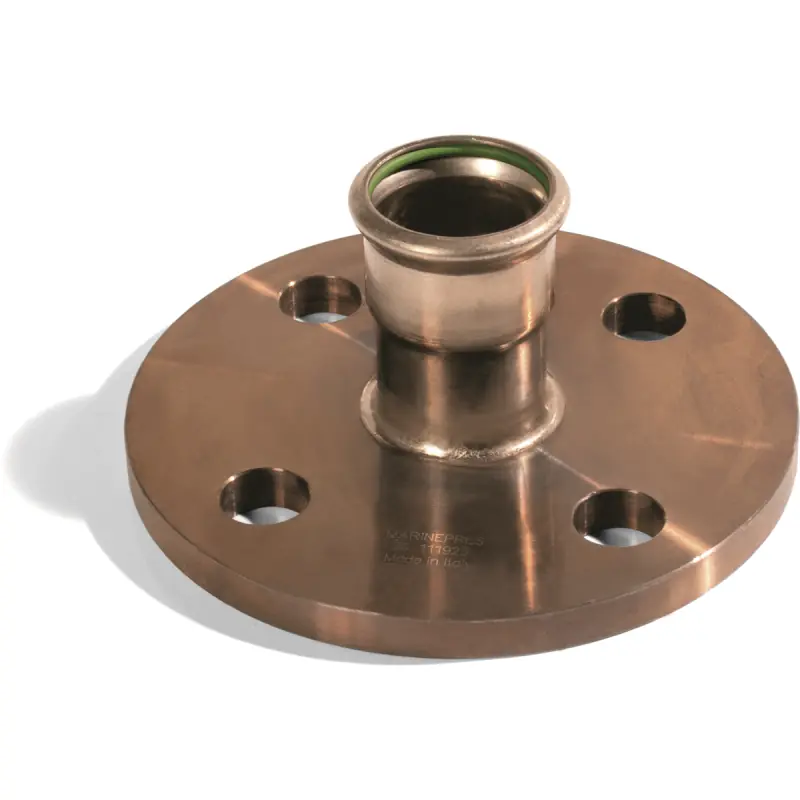

Key Features:
- Constructed from a special copper/nickel alloy (CuNi10Fe1.6Mn)
- Designed for pressfitting systems
- Equipped with a green FKM O-Ring with a patented profile
- Suitable for applications requiring resistance to corrosion in saline environments
Technical Specifications:
- Material: CuNi10Fe1.6Mn (copper/nickel alloy)
- Nominal Diameter (DN): 20 mm
- Pressure Rating (PN): 16 bar
- Temperature Range: -20°C to +220°C
- O-Ring Material: FKM (Fluoroelastomer)
- O-Ring Color: Green
- O-Ring Profile: Patented "M-shaped" profile
Materials:
- Body: CuNi10Fe1.6Mn alloy
- O-Ring: Green FKM
Dimensions:
- Outer Diameter: 22 mm
- Thickness: 1.5 mm
- Length: 58 mm
- Bolt Circle Diameter (D1): 75 mm
- Bolt Hole Diameter (D2): 14 mm
- Number of Bolt Holes: 4
Compatibility Information:
- Compatible with Raccorderie Metalliche's marinePRES pressfitting system
- Suitable for use with pipes and fittings made from CuNi10Fe1.6Mn alloy
- Compatible with pressing tools certified for marinePRES system
Additional Details:
- The "M-shaped" profile of the O-Ring ensures a secure and leak-proof connection
- The green color of the FKM O-Ring indicates its suitability for high-temperature applications
- The product is part of Raccorderie Metalliche's marinePRES system, which is designed for applications in saline and corrosive environments
