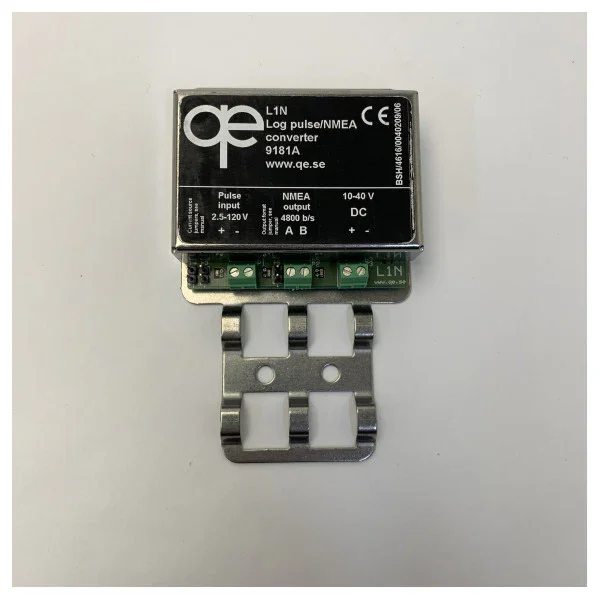

???? Qwerty-Elektronik L1N 9181A Log Pulse to NMEA Converter
Are you looking for a reliable and accurate solution to convert the data from your log pulse generator to the standardised NMEA format? The Qwerty-Elektronik L1N 9181A Log Pulse - NMEA Converter is the ideal bridge between older or specific nautical instruments and modern navigation systems. This essential device ensures a seamless integration of your speed information into your existing NMEA network on board.
Key Features
- Universal Compatibility: Designed to work with a wide range of log pulse generators.
- High Accuracy: Provides precise conversion of pulse data to the NMEA 0183 standard.
- Robust Construction: The converter is built to withstand harsh conditions at sea, ensuring a long lifespan and reliable operation.
- Easy Installation: Compact size and clear connections make installation on board quick and straightforward.
- Supports NMEA 0183: Ensures compatibility with almost all modern chart plotters, GPS systems, and marine displays.
Specifications (Integrated)
This converter, with model number L1N 9181A, is specifically designed to convert log pulse data to NMEA 0183 sentences, specifically for speed over water (VHW). The unit operates on a power supply voltage of 10 to 30 Volts direct current (DC), making it suitable for both 12V and 24V systems. The input accepts pulse signals from a log generator (with typical frequencies of 2 to 400 Hz), while the output consists of a standard NMEA 0183 talker port with a baud rate of 4800. The housing has an IP rating of IP67, providing complete protection against dust and immersion in water. The dimensions are 100 x 70 x 30 millimetres, with a weight of just 150 grams.
