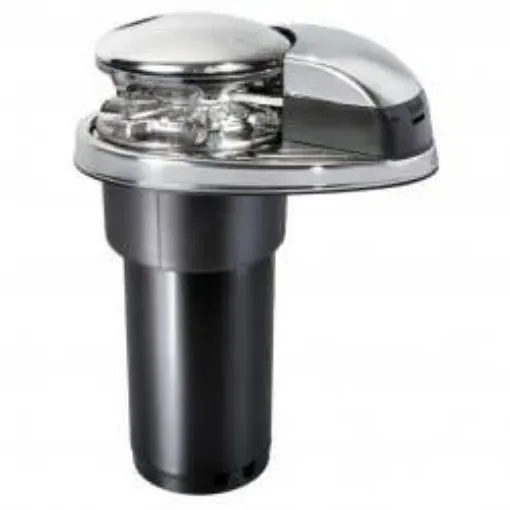

The Prince DP2E Vertical Windlass is a compact and efficient anchoring solution designed for boats ranging from 6 to 10 meters (20 to 33 feet) in length. This model features a 500W motor operating at 12V, providing reliable performance for various marine applications.
- Vertical Axis Design: Ideal for boats with limited deck space, allowing for efficient anchoring without occupying valuable deck area.
- Stainless Steel Construction: The base is made of AISI 316 stainless steel, ensuring durability and resistance to harsh marine environments.
- Anodized Aluminum Gearbox: The gearbox is constructed from anodized aluminum, offering strength and corrosion resistance.
- Integrated Chain Counter Sensor: Facilitates precise monitoring of chain length, enhancing anchoring accuracy.
- Manual Free-Fall System: Allows for quick and controlled deployment of the anchor when needed.
- Inspection Lid and Pressure Lever: Provides easy access for maintenance and secure operation during anchoring.
- IP67 Watertight Motor: Ensures reliable operation in wet conditions, protecting internal components from water ingress.
Technical Specifications:
- Motor Power: 500W
- Motor Supply Voltage: 12V
- Maximum Pull: 620 kg
- Maximum Working Load: 200 kg
- Working Load: 65 kg
- Current Absorption at Working Load: 60 A
- Maximum Chain Speed: 18.6 m/min
- Maximum Chain Speed at Working Load: 15.2 m/min
- Deck Thickness Compatibility: 20-40 mm
- Weight: 9.5 kg
- Gypsy Size: 8 mm
Materials:
- Base: AISI 316 Stainless Steel
- Gearbox: Anodized Aluminum
Compatibility Information:
This windlass is compatible with boats measuring 6 to 10 meters (20 to 33 feet) in length. The 8 mm gypsy is suitable for chains of 6 mm (DIN 766, ISO), 7 mm (DIN 766, ISO), and 8 mm (DIN 766, ISO) sizes, as well as 5/16" (G4, BBB) chains. It is also compatible with 12 mm (1/2") three-strand polyester ropes.
