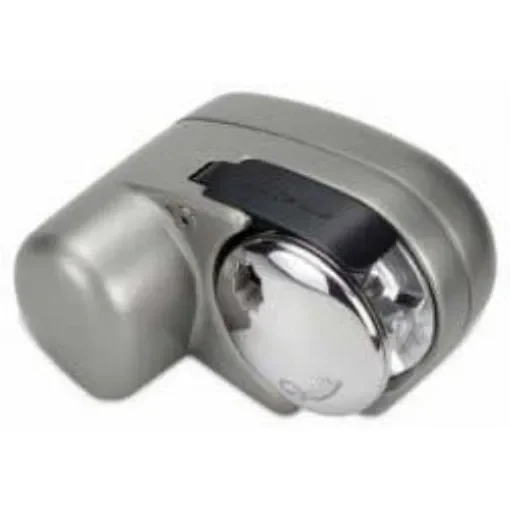

The Quick Genius GP2 1200 Horizontal On-Deck Windlass is a compact and robust anchoring solution designed for boats ranging from 6 to 9 meters (20 to 30 feet) in length. Ideal for vessels with limited deck space, this windlass offers efficient and reliable anchoring performance.
- Horizontal On-Deck Installation: Designed for above-deck mounting, facilitating easy installation and maintenance.
- Anodized Aluminum Base: Constructed with a hard oxide anodized aluminum base, ensuring durability and resistance to corrosion.
- Single Gypsy Design: Equipped with a single gypsy capable of handling both rope and chain, streamlining the anchoring process.
- Integrated Chain Counter Sensor: Features a built-in sensor and magnet for accurate chain measurement, enhancing anchoring precision.
- Pressure Lever Included: Supplied with a pressure lever for manual operation, providing control during anchoring and retrieval.
- IP66 Watertight Motor: Motor rated IP66 for watertightness, ensuring reliable operation in various marine conditions.
Technical Specifications
- Motor Power: 250 W
- Voltage: 12 V DC
- Maximum Pull: 550 kg
- Maximum Working Load: 170 kg
- Working Load: 50 kg
- Current Absorption at Working Load: 35 A
- Maximum Recovery Speed: 31.2 m/min
- Recovery Speed at Working Load: 25.1 m/min
- Deck Thickness Compatibility: 20 to 40 mm
- Gypsy Size: 6 mm, suitable for 6 mm DIN 766 and 6 mm ISO chain, as well as 1/2" (12.7 mm) rope
- Dimensions: Height: 129 mm; Width: 184 mm; Depth: 213 mm
- Weight: 8 kg
Materials
- Base: Anodized aluminum in hard oxide
- Gypsy: Suitable for 6 mm chain and 1/2" rope
Compatibility Information
The Quick Genius GP2 1200 is compatible with boats measuring between 6 to 9 meters (20 to 30 feet) in length. It is designed to handle 6 mm DIN 766 and 6 mm ISO chain, as well as 1/2" (12.7 mm) rope, making it versatile for various anchoring setups.
