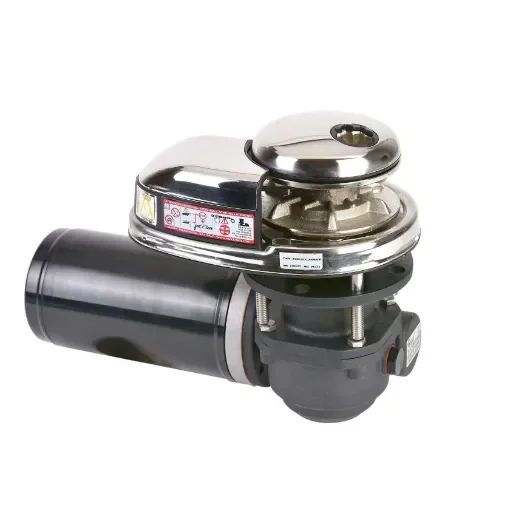

Key Features:
- Vertical Windlass Design: Ideal for boats with limited deck space, providing efficient anchoring solutions.
- Integrated Chain Counter Sensor: Ensures accurate measurement of chain length for precise anchoring.
- Manual Free-Fall System: Allows for controlled and manual descent of the anchor.
- Inspection Cover: Facilitates easy maintenance and inspection of internal components.
- Waterproof Motor: IP66-rated motor ensures reliable performance in harsh marine environments.
Technical Specifications:
- Motor Power: 500 W
- Voltage: 12 V DC
- Maximum Pull: 660 kg
- Maximum Working Load: 200 kg
- Working Load: 65 kg
- Maximum Chain Speed: 25.2 m/min
- Current Absorption at Working Load: 80 A
- Deck Thickness Compatibility: 20-30 mm
- Chain Compatibility: 6 mm diameter chains conforming to DIN 766 or ISO standards
Materials:
- Base: AISI 316 Stainless Steel
- Gearbox: Anodized Aluminum
- Motor: Waterproof with IP66 rating
Dimensions:
- Weight (Without Drum): 7.4 kg
- Weight (With Drum): 8.8 kg
- Dimensions (Without Drum): Approximately 190 mm (H) x 300 mm (W) x 300 mm (L)
- Dimensions (With Drum): Approximately 190 mm (H) x 300 mm (W) x 300 mm (L)
Compatibility Information:
- Boat Size: Suitable for boats ranging from 5 to 9 meters (16 to 29 feet)
- Chain Compatibility: Designed for 6 mm diameter chains adhering to DIN 766 or ISO standards
Additional Details:
- Drum Availability: Available in both with and without drum configurations
- Included Accessories: Windlass unit, solenoid unit, clutch handle, mounting hardware, and drilling template
