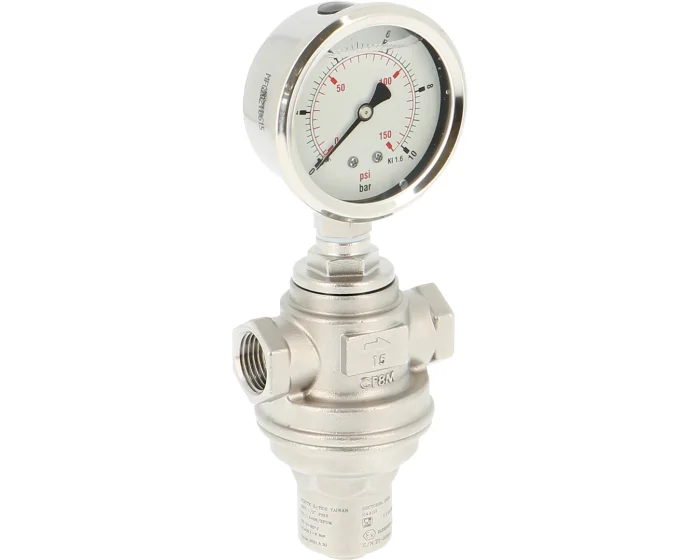

It is made of 316 stainless steel, its technology is of the direct-acting piston type with FPM sealing. The downstream pressure is adjusted using the screw. The pressure gauge allows direct reading of the reduced pressure. This device only operates in the direction indicated by an arrow on the body. Finally, the PRV stainless steel pressure reducer is suitable for clean fluids free of particles and must be protected by a filter installed upstream.
It is not necessary to choose a pressure reducer whose diameter is equal to that of the pipe but to determine this diameter using the charts and calculation formulas presented in the technical data sheet.
To ensure good downstream pressure stability and reduce turbulence at the PRV outlet, provide a settling length (straight pipe) of at least 5 x DN and 10 x DN if possible.
The ELITE stainless steel pressure reducer is ATEX II, 2 G/D approved for zones 1, 21, 2 and 22.
