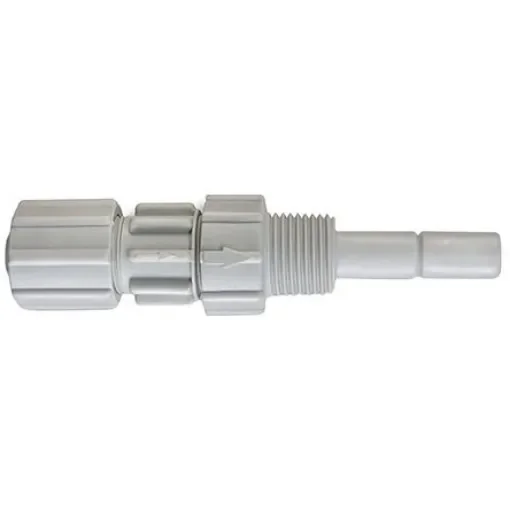

ProMinent Pump Accessory, Injection Valve for use with PE/PTFE Pipes - 1024710

Pump Accessory Type = Injection Valve
For Use With = PE/PTFE Pipes

Prominent Dosing Pump Injection Valve. Dosing Pump injection valves connect the metering line into the pipe at the required injection point. They help create a defined back pressure to aid accurate dosing and protect against backflow. Prominent PVT injection valves have a Polyvinylidene fluoride (PVDF) housing and Polytetrafluoroethylene (PTFE seals). The non return valve is spring loaded. These dosing pump injection valves can be fitted in any position and have a priming pressure of approximately 0.5 bar. Features and Benefits. R1/2 connection for E/PTFE pipe Max operating pressure of 16 bar (@25°C) 119mm Length Nozzle outside diameter of 8mm Nozzle inside diameter of 5mm
