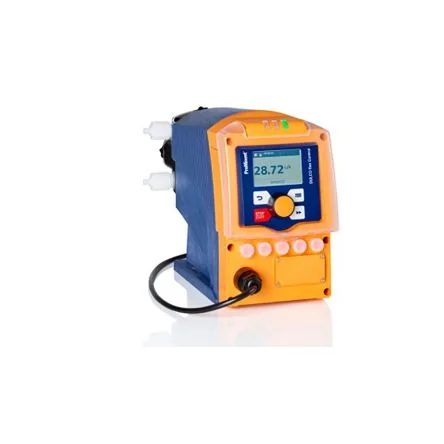

ProMinent Peristaltic Electric Operated Positive Displacement Pump, 30L/h, 5 bar, 100-230 V ±10%, 50/60 Hz - DFXAEU0530SPTU0000U11130EN

Pump Type = Peristaltic
Drive Type = Electric
Maximum Flow Rate = 30L/h
Maximum Head = 5m
Maximum Working Pressure = 5 bar
Series = DFXA
Body Material = PVDF
Supply Voltage = 100-230 V ±10%, 50/60 Hz
Input Power = 45W
Wetted Materials = TPV
Input Connection Size = M20

Adjustment of the metering rate directly in l/h or gph Simple tube change No problems with very gaseous media or air locks Suitable for viscosities of up to 10,000 mPas Sole contact with media in the tube Many different control options, such as using an analogue 0/4-20 mA signal, contact controller or via process control systems Application Potable water and waste water treatment Food and beverage industry Paper industry Chemical industry Chemical distributors Electroplating Swimming pools All industrial applications, either as a stand-alone unit or integrated in a complete system
