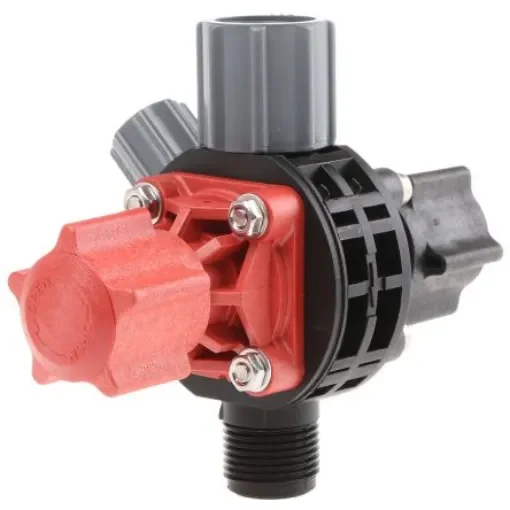

ProMinent Multi-function Valve, Multi-function Valve for use with Dosing Pump - 792011

Dosing Pump Multifunction Valve. Prominent multi function valves are a combined relief and back pressure valve that fits directly onto the pumps dosing head. The back pressure valve creates a uniform backpressure that helps to maintain precise metering and protects against inaccuracy. The valve is easy to operate using two rotary dials either side that return to the original position when released. Suitable for use with almost any chemical. Features and Benefits. Back pressure valve opening pressure 1.5 bar Relief valve opening pressure 6 or 10 bar (model dependant) Priming aid for backpressure valve Discharge line for servicing / maintenance PVDF Body PTFE coated diaphragm FKM and EPDM seals Suitable for use with Gamma /X, Alpha and Beta solenoid metering pumps.
