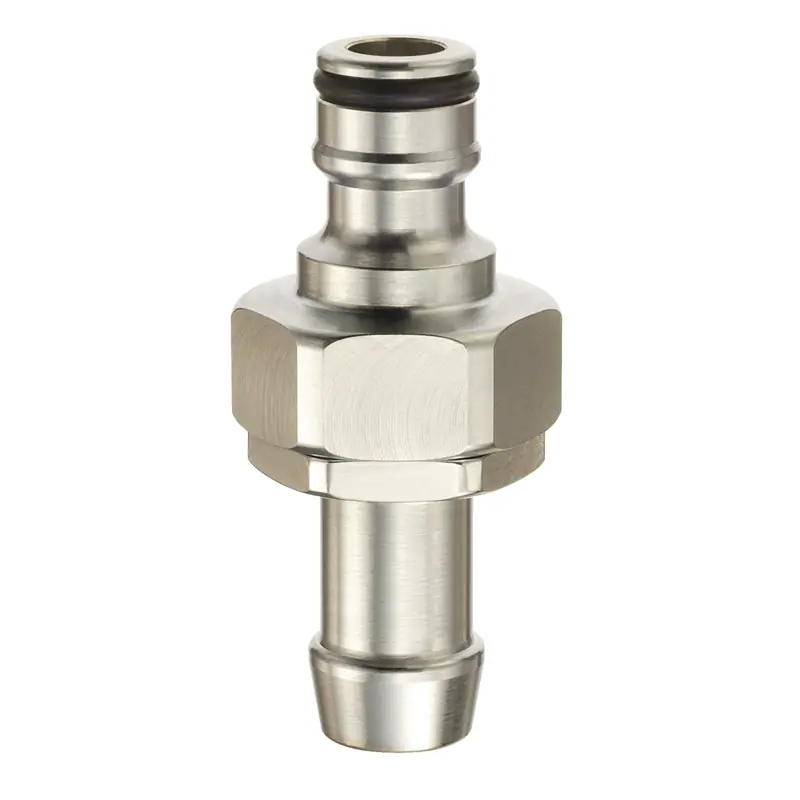

Key Features:
- Designed for efficient and ergonomic water circuit connections.
- Offers high flow rates suitable for various applications.
- Constructed to withstand harsh working conditions.
- Compatible with water, detergent-mixed water, and anti-freeze mixed water.
- Incorporates a quality seal that is 100% leak-free.
Technical Specifications:
- Operating Pressure: 0 to 10 bar (0 to 145 psi).
- Flow Rate:
24 l/min (ΔP = 0.3 bar) with valved coupling.
33.5 l/min (ΔP = 0.3 bar) without shutter.
- Passage Diameter: 9 mm.
- Temperature Range: -15°C to +60°C.
- Construction: Chrome-plated brass body.
Materials:
- Body: Chrome-plated brass.
- Valve: Composite material.
- Gasket: Nitrile.
- Needle and Spring: Stainless steel.
Compatibility Information:
- The ELS couplings are designed to be compatible with existing plastic or brass products with the same body diameter.
- Suitable for applications in maintenance, cleaning, washing, supplying cleaning machines, or connecting wash-down guns.
- Commonly used in industrial manufacturing, construction, public works, food processing, and water distribution operations.
Additional Details:
- The ELS couplings are versatile, automatic, and applicable universally.
- They allow interchanging and promote automation.
- The internal diameter is 9 mm.
- They are suitable for unlimited applications.
