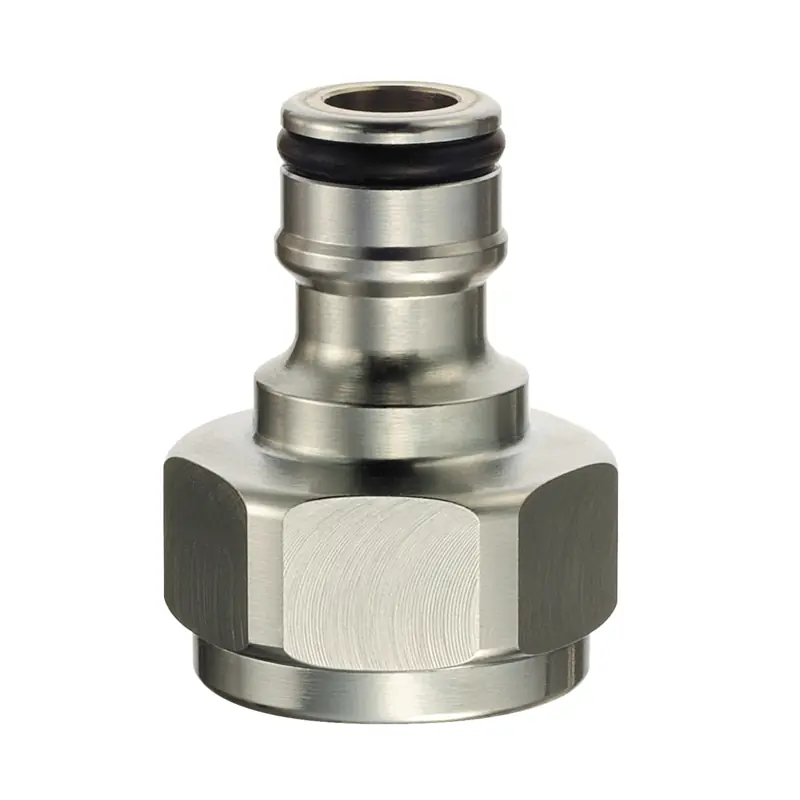

Key Features:
- Designed for water systems requiring quick and secure connections.
- Features a valved design to prevent backflow and ensure safety.
- Compatible with standard 3/4" FNPT (Female National Pipe Thread) connections.
Technical Specifications:
- Operating Pressure: 0 to 145 psi (0 to 10 bar)
- Flow Rate:
6.34 GPM (Gallons Per Minute) with a pressure drop (ΔP) of 4.35 psi for the valved coupling.
8.85 GPM with a ΔP of 4.35 psi for the straight-through coupling.
- Internal Diameter (ID) Passage: 9 mm
- Temperature Range: +5°F to +140°F (-15°C to +60°C)
Materials:
- Body: Chrome-plated brass for enhanced durability and corrosion resistance.
Dimensions:
- Reference: ELS 091204
- A (inch): 0.2001
- B (inch): 0.1148
- C (inch): 0.0984
Compatibility Information:
- Designed to fit standard 3/4" FNPT connections, making it suitable for various water system applications.
Additional Details:
- The valved design ensures that the coupling remains closed when disconnected, preventing accidental spills or contamination.
- Ideal for maintenance, cleaning, and washing applications in industrial manufacturing, construction, public works, food processing, and water distribution operations.
