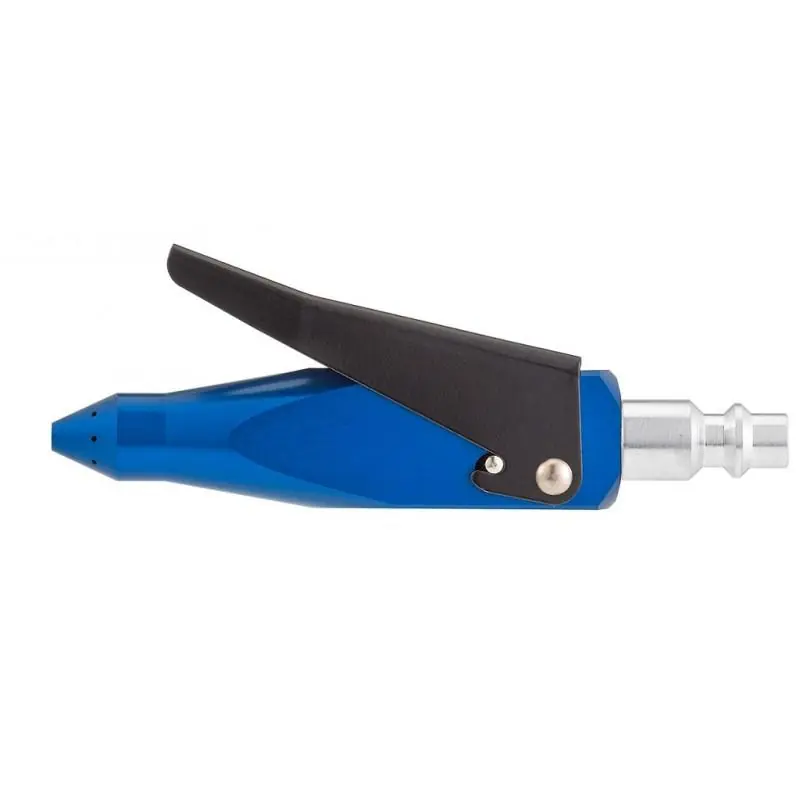

The Prevost Clickable Blow Gun with ISO 6150 B Nozzle is a high-performance tool designed for efficient and safe compressed air applications. Its ergonomic design and durable construction make it suitable for various industrial and workshop environments.
- ISO 6150 B Nozzle: Compatible with ISO 6150 B fittings, ensuring a secure and leak-free connection.
- Ergonomic Design: Features a comfortable grip for ease of use during extended periods.
- Integrated Plug: Built-in plug eliminates the risk of leaks, enhancing energy efficiency.
- Protective Air Curtain: Equipped with a protective air curtain to safeguard against backflow of dust and shavings.
Technical Specifications
- Maximum Operating Pressure: 16 bar
- Noise Level: 80 dB
- Passage Diameter: 6 mm
- Flow Rate at 6 bar: 300 l/min
- Air Consumption at 6 bar: 27 Nm³/h
- Blowing Force at 6 bar: 390 g
- Dynamic Pressure at 10 mm (6 bar): 2.2 bar
- Operating Temperature Range: -15°C to +70°C
Materials
- Body: Polyamide composite, offering durability, lightweight properties, and resistance to abrasion, impacts, and chemical exposure.
- Nozzle: Galvanized steel, providing strength and longevity.
Dimensions
- Length: 168 mm
- Width: 141 mm
- Nozzle Length: 61 mm
- Shield Length: 20 mm
Compatibility Information
- Fitting Compatibility: Designed for use with ISO 6150 B fittings, ensuring a secure and leak-free connection.
- Coupler Compatibility: Compatible with Prevost prevoS1 quick-safety couplings, which serve as the handle for the assembly, enhancing ease of use and eliminating the risk of leaks between the coupling and the tool.
