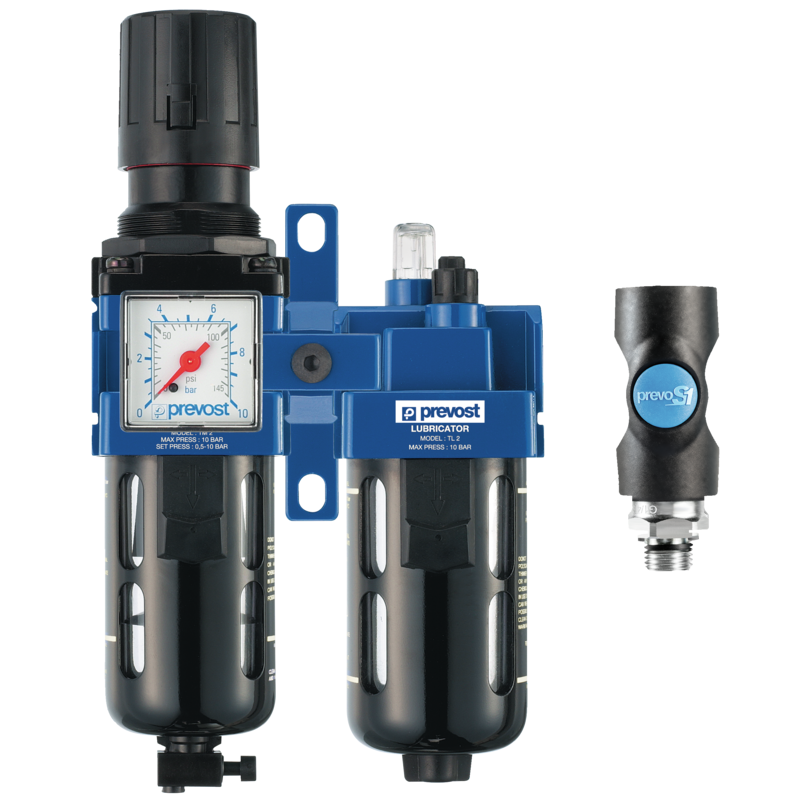

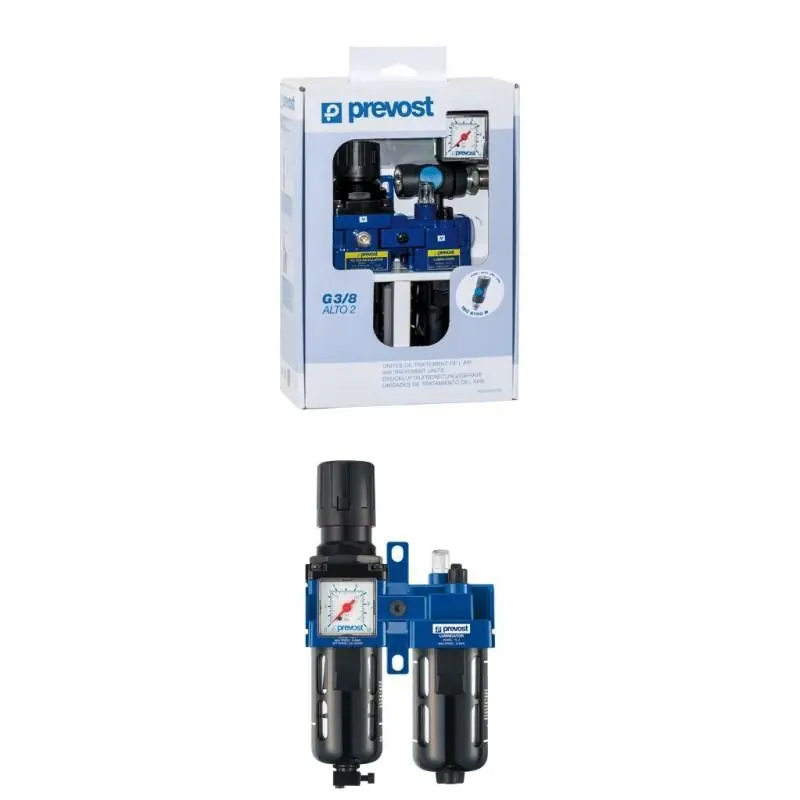

The Prevost ALTO 2 Filter-Regulator-Lubricator is a comprehensive compressed air treatment unit designed to ensure clean, regulated, and lubricated air for pneumatic tools. This unit is equipped with a pressure gauge, wall bracket, and quick connections for easy installation and maintenance.
- Pressure Gauge: Equipped with a pressure gauge measuring 0 to 10 bar.
- Wall Bracket: Includes a wall bracket for secure mounting.
- Quick Connections: Features quick connections for efficient setup and maintenance.
Technical Specifications:
- Temperature Range: +5°C to +50°C.
- Maximum Operating Pressure: 12 bar.
- Filtration: 25 microns.
- Flow Rate: 1250 liters per minute at a 1 bar pressure drop.
- Thread Type: BSPP female thread G 3/8.
Materials:
- Body: Aluminium.
- Bowl: Polycarbonate with metallic protection.
Dimensions:
- Length (A): 182 mm.
- Height (B): 220 mm.
Compatibility Information:
This unit is compatible with pneumatic tools requiring clean, regulated, and lubricated air. The BSPP female thread G 3/8 ensures compatibility with standard fittings.
