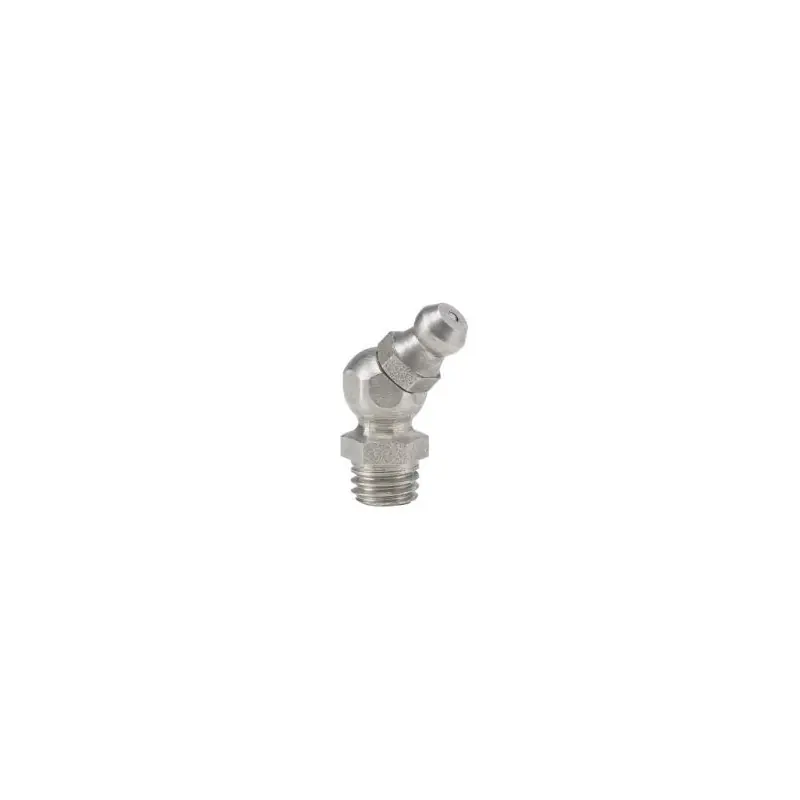

The Pressol Hydraulic Grease Nipple H2-45° M8 x 1.25 is a high-quality lubrication fitting designed for efficient grease application in hydraulic systems. Manufactured by Pressol, a reputable company known for its precision-engineered lubrication components, this grease nipple ensures reliable performance and durability.
- Angled Design: The 45° angle facilitates easy access to lubrication points in confined spaces, enhancing maintenance efficiency.
- Self-Forming Thread: Equipped with a self-forming thread, this grease nipple provides a secure and leak-proof connection, ensuring optimal grease delivery.
- Stainless Steel Construction: Made from stainless steel, it offers excellent resistance to corrosion, making it suitable for various industrial environments.
- Hexagonal Head: The hexagonal head design allows for easy installation and removal using standard tools.

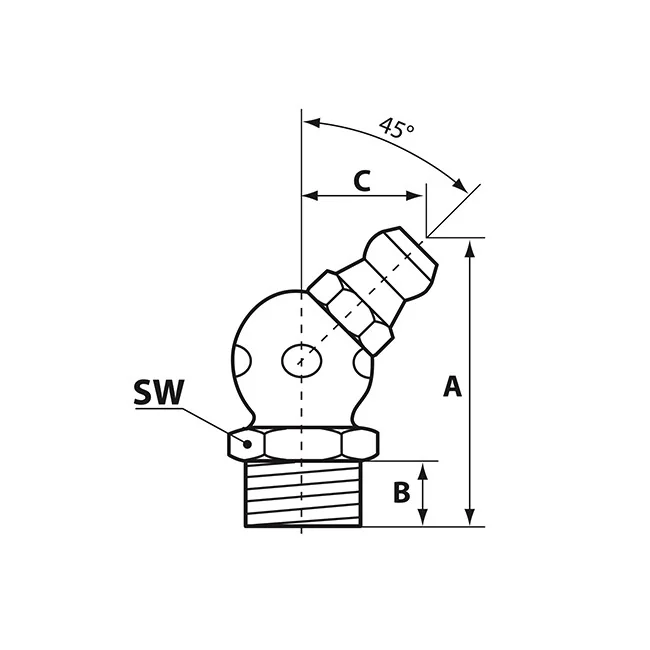

Technical Specifications:
- Thread Pitch: M8 x 1.25
- Angle: 45°
- Material: Stainless Steel
- Measurement A: 23.5 mm
- Measurement B: 5.5 mm
- Measurement C: 10.5 mm
- Flat Dimension (SW): 9 mm
Materials:
Constructed from high-grade stainless steel, this grease nipple ensures longevity and resistance to wear and tear, even in harsh operating conditions.
Dimensions:
- Measurement A: 23.5 mm
- Measurement B: 5.5 mm
- Measurement C: 10.5 mm
- Flat Dimension (SW): 9 mm
Compatibility Information:
This grease nipple is compatible with standard M8 x 1.25 threaded connections and is designed to meet the specifications outlined in DIN 71412, ensuring compatibility with a wide range of hydraulic systems.
