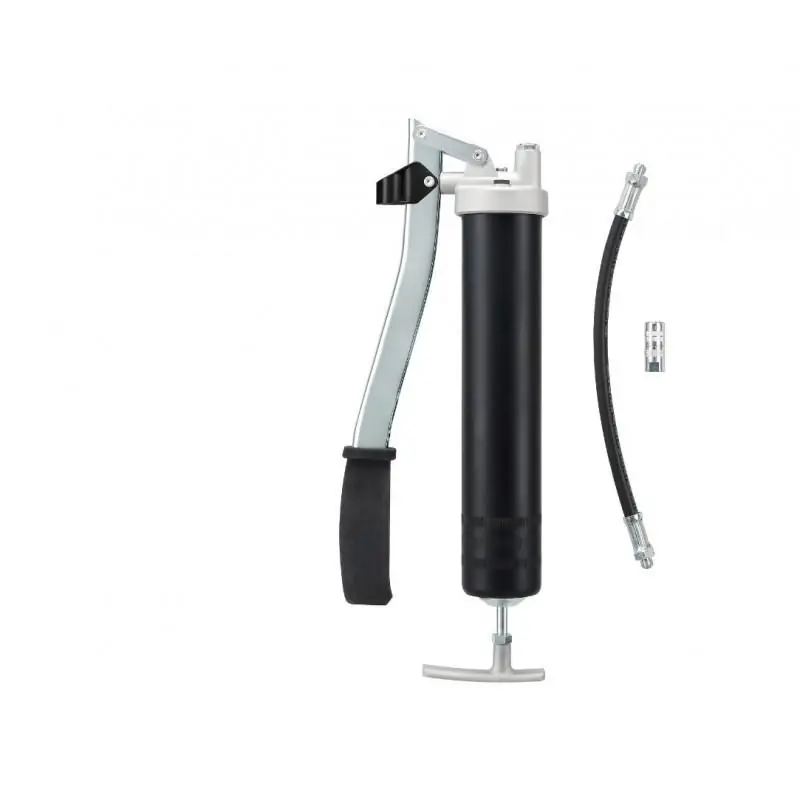

The Hand Grease Pump PRELIxx PRO Galvanized is a professional-grade manual grease pump designed for efficient lubrication in various mechanical applications. It is engineered to handle greases up to NLGI grade 3 at 20°C, ensuring versatility across different lubrication needs.
- Hose Holder: Equipped with a hose bracket for convenient storage and accessibility.
- Filling Valve (FN): M10 x 1 male thread for secure and leak-proof refilling.
- Zinc Die-Cast Grease Pump Head (Z410): Provides durability and resistance to corrosion.
- Zinc Ball Valve: Ensures reliable operation and longevity.
- Removable and Mobile Push Rod System: Facilitates easy maintenance and adaptability.
- High-Pressure Hose: M10 x 1 male thread, 11 x 300 mm, with seal, designed for high-pressure applications.
- Precision Clip: 4BA, M10 x 1, ensuring a secure connection.
Technical Specifications:
- Connection: M10 x 1
- Filling Valve: M10 x 1
- Volume: 500 cm³
- Filling Options: 400 g grease cartridge (DIN 1284), grease filling system, or bulk grease applied with a spatula.
- Pump Piston Diameter: 9 mm
- Piston Control: Manual lever operation
- Volume Dispensed per Stroke: 1.2 cm³ at a grease density of 0.92 kg/dm³
- Discharge Pressure: Up to 600 bar
- System Burst Pressure: 900 bar
- Pump Head Burst Pressure: 1200 bar
- Actuation of the Pusher: T-handle
- Cover: Removable
- Body Thickness: 1 mm
- Dimensions (L x W x H): 395 x 140 x 66 mm
- Weight: 1.35 kg
Materials:
- Grease Pump Head: Zinc die-cast (Z410)
- Ball Valve: Zinc-plated
- Hose: High-pressure hose with seal
- Body: Galvanized steel
Compatibility Information:
- Grease Types: Compatible with greases up to NLGI grade 3 at 20°C
- Cartridge Size: Suitable for 400 g grease cartridges (DIN 1284)
- Filling Options: Can be filled using a grease filling system or bulk grease applied with a spatula
Additional Details:
- Variable Stroke: Allows lubrication in confined spaces with minimal effort
- Ergonomic Handle: Non-slip design for excellent power transfer and handling
- Easy Maintenance: Components can be easily disassembled for cleaning and maintenance
- Durability: Designed for use in tough conditions with resistance to impact damage
