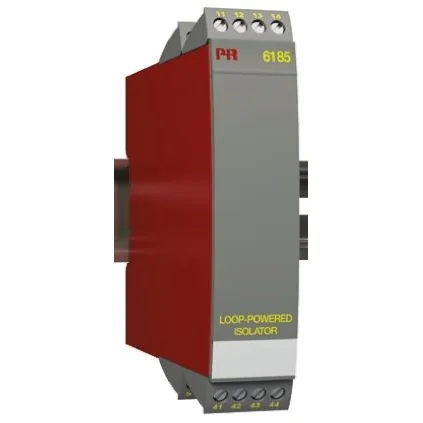

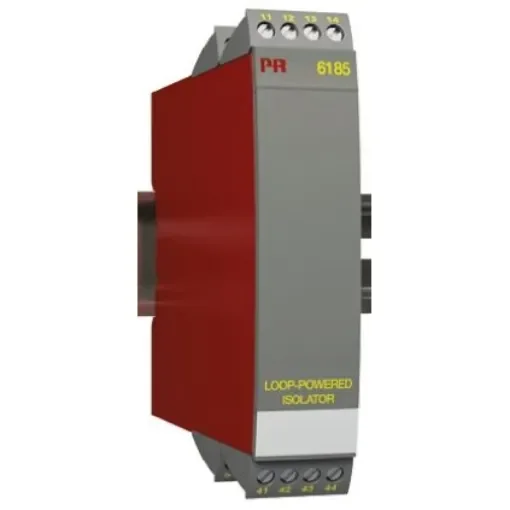

PR Electronics 6185A Series Loop Powered Isolator, Current Input, Current Output

PR Electronics 6185 Loop-powered Isolator. PR Electronics 6185 series are loop powered isolators provide galvanic separation of analogue current signals. Designed to give a simple and efficient solution in applications with unproblematic transmission of current signals according to NAMUR. The 6185 isolator is powered by the measured signal and loads the loop with a maximum 1.8 Vdc. Mounted vertically or horizontally on a DIN rail. As the devices can be mounted without distance between neighbouring units, up to 168 channels can be mounted per meter. Features and Benefits. Slimline channel width of less than 6 mm Loop-powered isolator No separate supply necessary Low response time High noise suppression Inputs and outputs are floating and galvanically separated Input is protected against overvoltage and polarity error DIN Rail mounting 1-channel version, stock-no. ; 796-6991 796-6991 2-channel version, stock-no. ; 796-6916 796-6916 4-channel version, stock-no. ; 796-6948 796-6948
