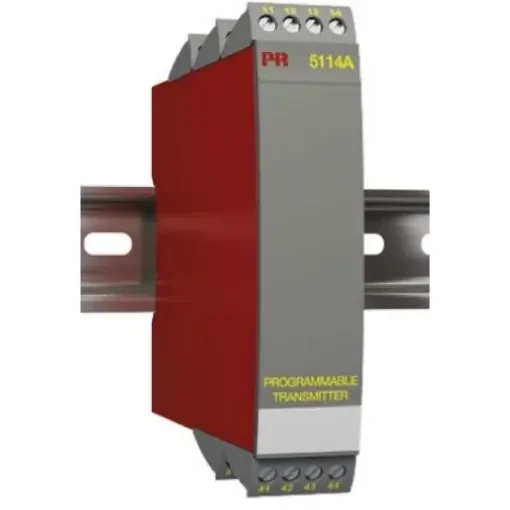

PR Electronics 5114A Series Converter Module, Current, RTD, Thermocouple, Voltage Input, Current, Voltage Output, 19.2 - 5114AB

PR Electronics 5114A Programmable Transmitter. The 9203B universal transmitters are programmable via the PR 4501 detachable display module ( ; 238-0641 238-0641 ). The 4501 module allows the programming of the vast array of input and output parameters easily and safely. Together with advanced functions including 2 point calibration, process simulation and diagnostics. With a simple menu and explanatory text the 4501 is extremely straightforward to navigate. Functions are clearly depicted on the 4 line LCD display even in low light conditions. Line 1 shows the input signal, line 2 shows the units, and line 3 shows analogue output or tag number. Line 4 shows the communication and relay status. In addition the 4501 features password protection. Programming access can be blocked by assigning a password which is conveniently saved in the 9203B transmitter. This ensures a high degree of protection is maintained and prevents any unauthorised modifications to the configuration. Features and Benefits. • Input for RTD, TC, mV, linear resistance, mA and V • Automatic 4- / 3-wire or programmable 2-wire cable compensation • Active or passive current output and selectable voltage output • Programmable current (0..100 mA) and voltage (0..250 VDC) inputs. • Universal voltage supply • 3.75 kVac galvanic isolation • Configurable sensor error detection including NAMUR NE43 • Separation of circuits in PELV/SELV installations
