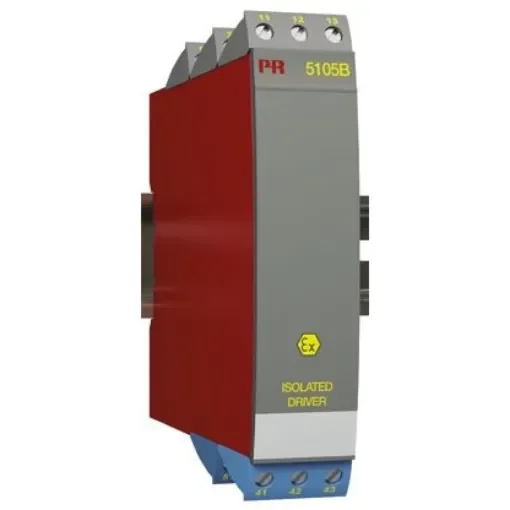

PR Electronics 2 Channel Galvanic Barrier, Isolated Driver, Current, Voltage Input, Current, Voltage Output, ATEX - 5105BB

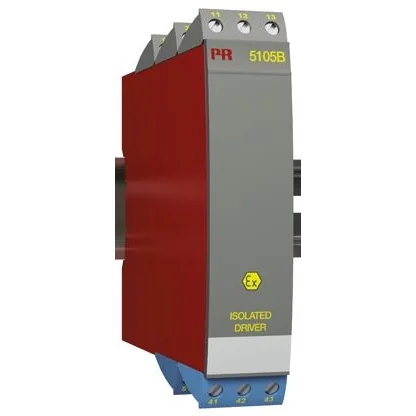

PR Electronics 5105B Ex-isolated Driver. PR Electronics 5105B intrinsically safe isolated driver is a safety barrier for current signals transmitted to I/P converters and displays mounted in hazardous area. The 5105B signal conditioner is based on microprocessor technology for gain and offset. The analogue signal is transmitted at a response time of less than 25 ms. 20 factory-calibrated measurement ranges in the 5105A can be selected by the internal DIP-switches without the need for recalibration. Mounted vertically or horizontally on a DIN rail. As the devices can be mounted without distance between neighbouring units, up to 84 channels can be mounted per meter. Features and Benefits. 1 : 1 or signal conversion of analogue current / voltage signals 3.75 kV ac galvanic isolation Loop supply > 17.1 V Inputs, outputs and supply are floating and galvanically separated Output can be connected either as an active current / voltage transmitter or as a 2-wire transmitter Low response time Universal supply by AC or DC DIN Rail mounting (vertically or horizontally)
