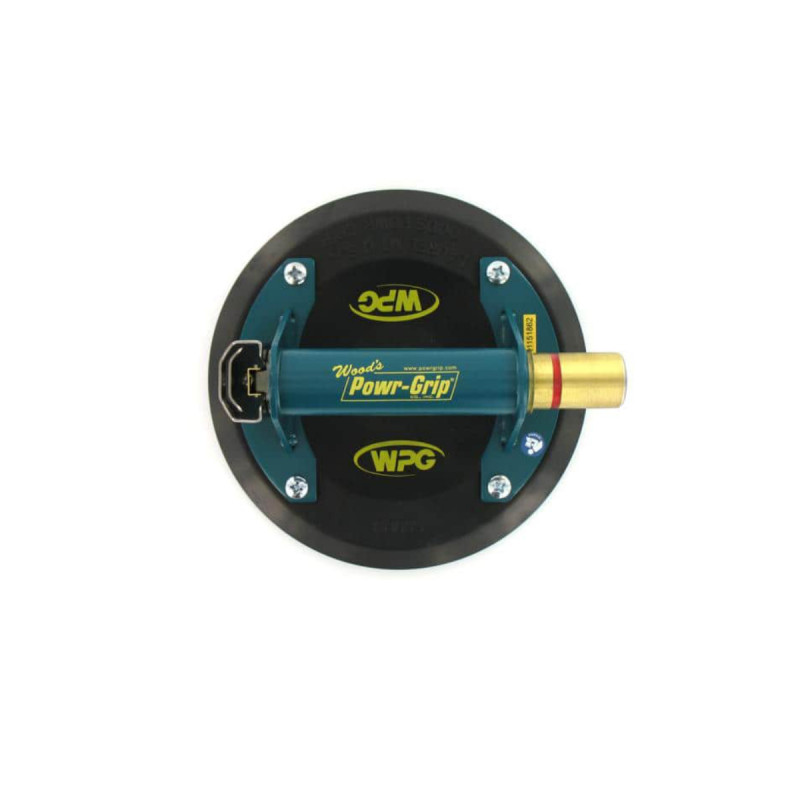

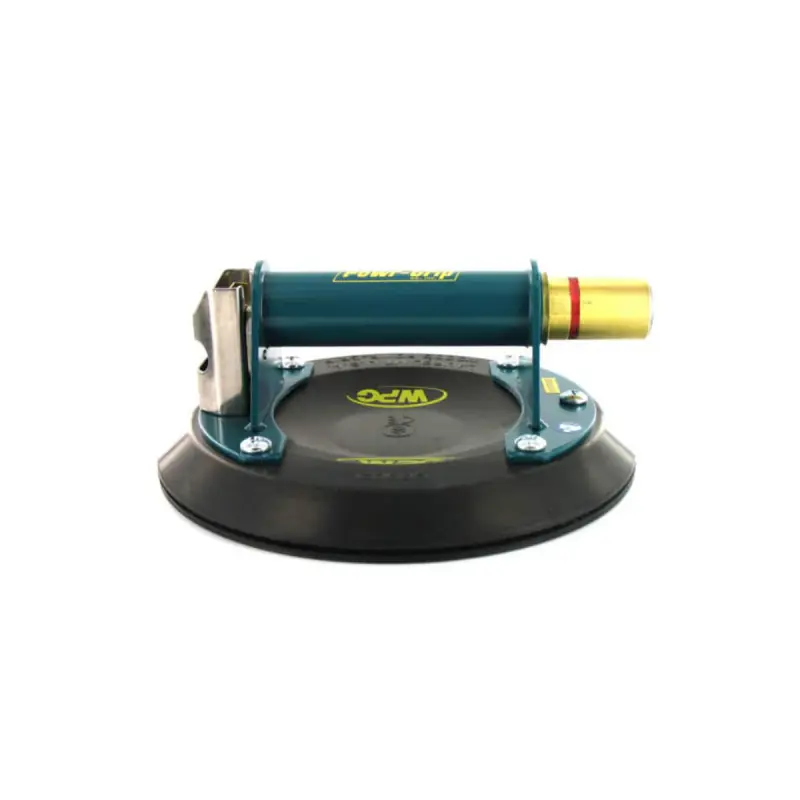

The POWR-GRIP metal handle lifting suction cup with a diameter of 20 cm has a capacity of 57 kg and is designed for industrial production and delivery applications. The hand-held suction cup allows for lifting and transporting loads, production materials, unwieldy household appliances, and other heavy objects while protecting the surface of the material from potential damage.
The POWR-GRIP N4950 suction cup operates on a manually operated pump system that extracts air between the rubber disc and the contact surface. The suction cup features a patented vacuum indicator (red line on the A.B.S piston assembly) as well as a retention valve, allowing for confident and safe operation. The suction cup completely detaches thanks to its release mechanism.
- Durable metal handle
- Flat vacuum disc ideal for handling household appliances or rigid sheet materials
- Quick adhesion on flat, smooth, non-porous surfaces
- The red line indicator alerts the user to any loss of vacuum
- A retention valve allows you to pump again without losing the existing vacuum
- The valve lever allows for quick and complete release
- POWR-GRIP hand-held suction cup
- Model N4950
- Colour: black and blue/green

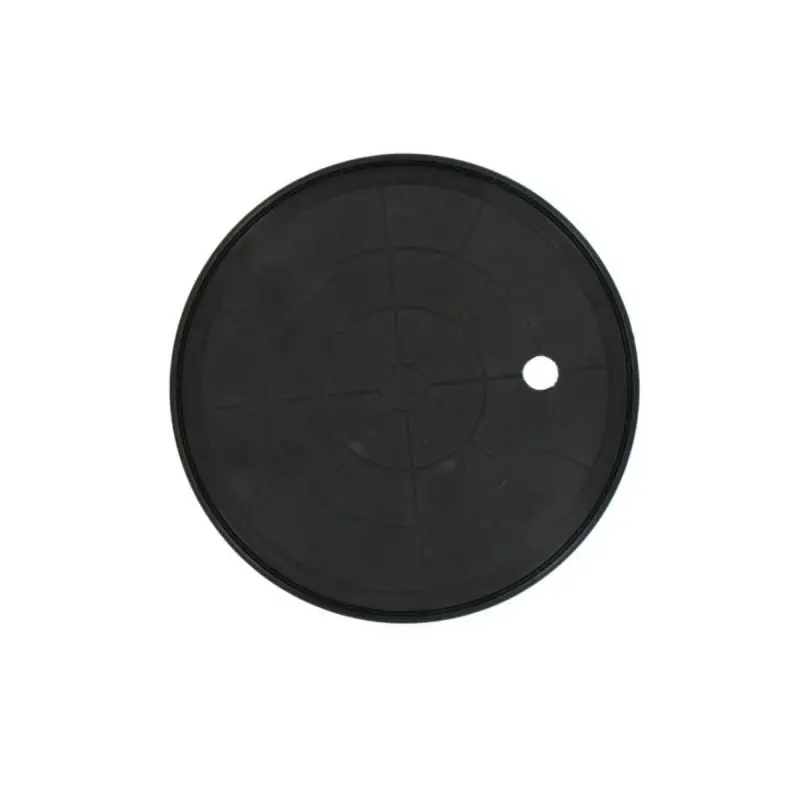

- Vacuum disc: flat diameter of 8 in [20 cm] (model G0695)
- Load capacity: 125 lbs [57 kg] per suction cup
- Suitable for: glass, plastics, metals
- Metal handle
- Rubber disc

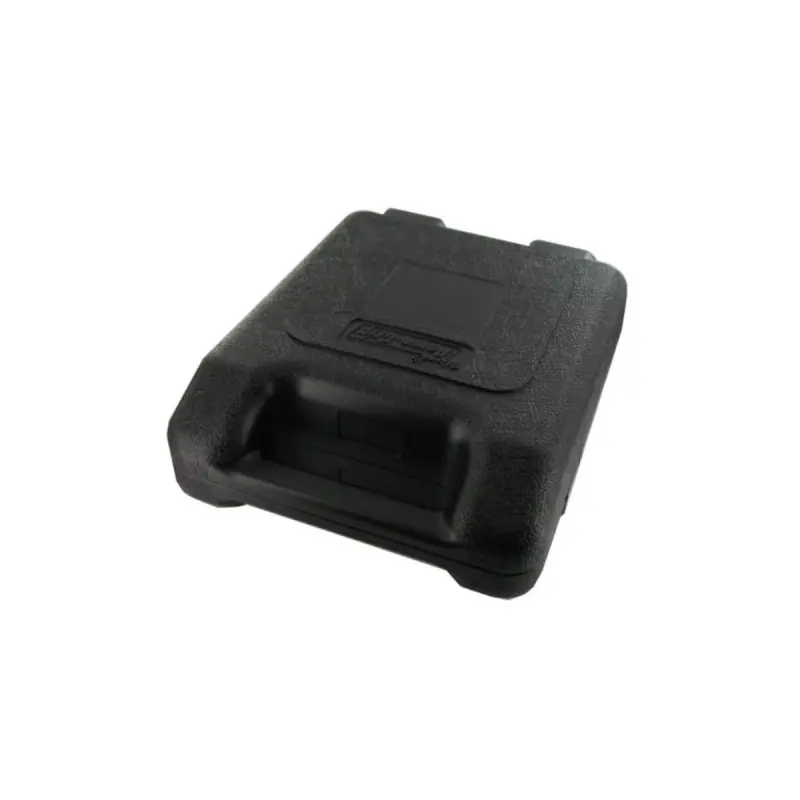

- Included protective transport case, 20 cm
Instructions for use:
ATTACH:
Position the hand-held suction cup on the contact surface so that the red line is visible if it appears while you are lifting the load. WARNING: Test the suction cup on load surfaces with light colours or soft coatings to ensure it does not leave stains or deformities.
Pump the piston until the suction cup is fully attached. When the red line is hidden, the vacuum is sufficient to lift.
Check the piston frequently to ensure the suction cup remains securely attached. If the red line appears while you are lifting, place the load on the ground immediately and pump the piston until the red line is hidden again (see WARNINGS technical sheet)
RELEASE:
Place the load on a solid support.
Pull on one of the release legs (for 6 in [15 cm] suction cups) or press the release lever (for other suction cups) until the suction cup completely detaches. WARNING: Remove the suction cup when not in use.
A POWR-GRIP metal handle lifting suction cup with a diameter of 20 cm
Delivered in its original packaging
