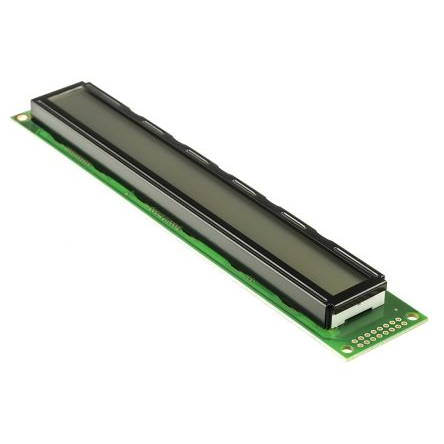

Powertip PC4002LRS-B Alphanumeric LCD Display, 2 Rows by 40 Characters, Transflective
Experience clear visibility with the Powertip 2x40 alphanumeric LCD display, perfect for various applications.
Manufacturer part number: PC4002LRS-B
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Display Type = Alphanumeric
Character Matrix = 2 Rows by 40 Characters
Character Rows = 2
Character Width = 5.6mm
Viewing Area Height = 154.5mm
External Depth = 13.5mm
Backlight Type = LED
External Dimensions = 182 x 13.5 x 33.5mm
Controller Type = ST7066U
Display Mode = Transflective
Maximum Operating Temperature = +50°C
Driver Mounting = COB°C
Powertip Alphanumeric LCDThe Powertip alphanumeric LCD has a character matrix of 2 rows by 40 characters and transflective display mode. The viewing area for this display is 154.5mm of height and 15.3mm of width. Note: Reverse polarity connection to the module will cause irreparable damage. Caution: Observe anti-static precautions when storing or handling these LCD modules.Features and Benefits5 x 7 dot matrix format with cursor 160 characters and symbols Display matrix technology is FSTN, STN, TN Cursor commands are home, ON/OFF, shift and set direction Display commands are clear, shift, ON/OFF, read and write Parallel Interface to 4-bit or 8-bit microprocessor Power supply is 5V ST7066U controller Wide viewing angle Operating temperature is between 0°C and 50°C
