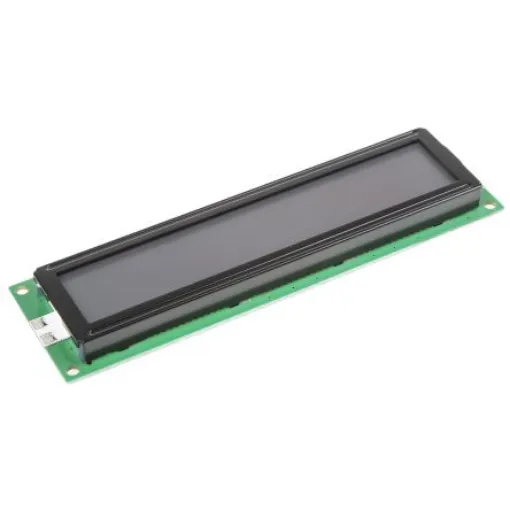

Powertip PC2002LRSL Alphanumeric LCD Display, 2 Rows by 20 Characters, Transflective
Experience superior visibility with the Powertip 2x20 LCD display, perfect for various applications.
Manufacturer part number: PC2002LRSL
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Display Type = Alphanumeric
Character Matrix = 2 Rows by 20 Characters
Character Rows = 2
Character Height = 9.2mm
Viewing Area Dimensions = 123 x 23mm
External Depth = 13.7mm
Backlight Type = LED
External Dimensions = 146 x 43 x 13.7mm
Controller Type = ST7066U
Display Matrix Technology = STN
Maximum Operating Temperature = +50°C
Driver Mounting = COB°C
Observe ANTISTATIC precautions when storing or handling these modules. Reverse polarity connection to the module will cause irreparable damage. Powertip Transflective backlit LCD STN. Transflective (dark character on a light background) alphanumeric STN and TN dot matrix modules with integral green LED backlight and LCD display drivers. 5x7 dot matrix format (except 16x1, which uses 5x10, and 20x4 and 40x4, which use 5x8) with cursor 160 characters and symbols Wide viewing angle Single +5V supply CMOS controller and driver Parallel interface to 4 or 8-bit microprocessor Display commands: clear, shift, on/off, read, write Cursor commands: home, address set Operating temperature range 0°C to 50°C
