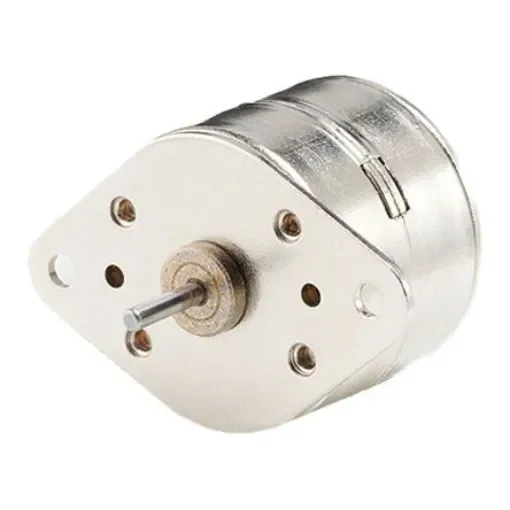

Portescap CanStack Stepper Motor, 11mNm Torque, 12 V, 18°, 20.5 x 31mm Frame, 1.5mm Shaft - 20M020D2B
High-performance CanStack stepper motor with 11mNm torque and 12V supply for reliable motion control.
Manufacturer part number: 20M020D2B
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Stepper Motor Type = CanStack
Step Angle = 18°
Holding Torque = 11mNm
Number Of Wires = 4
Supply Voltage = 12 V
Frame Size = 20.5 x 31mm
Shaft Diameter = 1.5mm
Current Rating = 100 mA
Winding Arrangement = Bipolar
Shaft Length = 8.5mm
Depth = 24.88mm
Number of Pole Pairs = 5
Resistance Per Phase = 115.2O
Output Speed = 1200 rpm
Standards Met = RoHS CompliantmNm
Can-Stack-Stepper Motors. Can-stack stepper motors focus on simplicity of design to provide a cost-effective motion solution for your application. Bipolar can-stack stepper motors 5 Vdc and 12 Vdc version available Excellent open loop control solution High continuous motor torque output per package size Long life provided by high-quality bearing assembly
