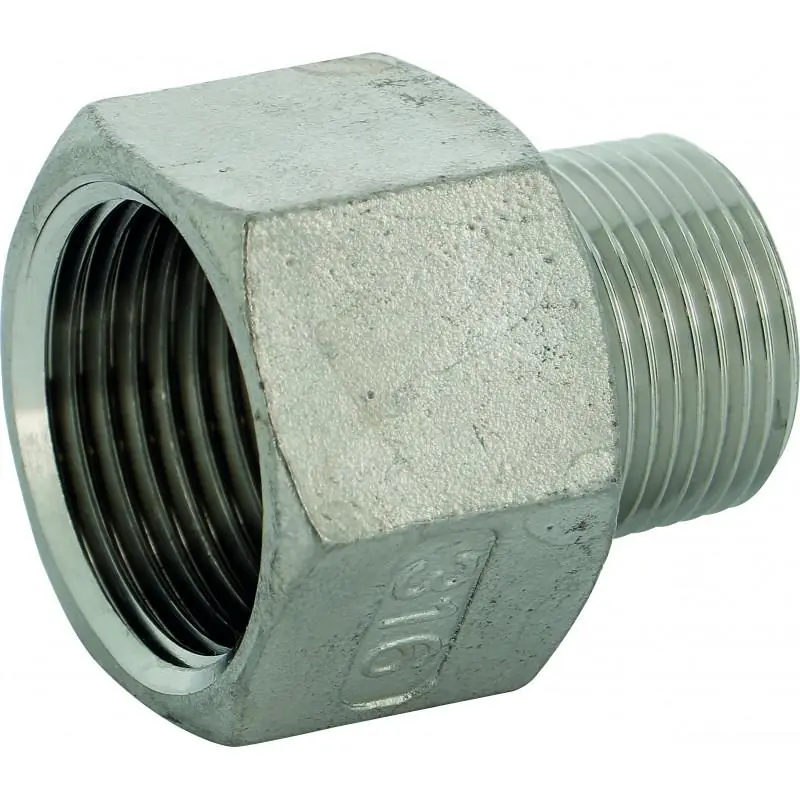

The Stainless Steel AISI 316 Reduced Nipple F/M is a high-quality fitting designed for connecting pipes of different diameters. Constructed from AISI 316 stainless steel, it offers excellent resistance to corrosion, making it suitable for various applications involving water, compressed air, and saturated steam.
- Material: AISI 316 stainless steel, known for its superior corrosion resistance.
- Temperature Range: Suitable for temperatures between -25°C and +180°C.
- Pressure Rating: Designed to withstand pressures up to 20 bars.
- Thread Type: Male conic (BSP) and female cylindrical (BSP) threads for secure connections.
- Manufacturing Process: Produced using "lost wax" molding for precision.
Technical Specifications
- Pressure: 20 bars
- Temperature Range: -25°C to +180°C
- Body Material: Stainless Steel ASTM A351 CF8M
- Connection Type: Cylindrical threaded connection and tapered thread, BSP
- Standards: ISO 228/1; ISO 7/1
Dimensions and Compatibility
The reduced nipple is available in various sizes, with the following dimensions:
- DN 1/4" x 1/8": Length: 27 mm, Width: 17 mm, Weight: 0.024 kg
- DN 3/8" x 1/4": Length: 31 mm, Width: 21 mm, Weight: 0.039 kg
- DN 1/2" x 3/8": Length: 35 mm, Width: 26 mm, Weight: 0.068 kg
- DN 3/4" x 1/2": Length: 38.5 mm, Width: 32 mm, Weight: 0.104 kg
- DN 1" x 3/4": Length: 44 mm, Width: 38 mm, Weight: 0.127 kg
- DN 1"1/4 x 1": Length: 47 mm, Width: 46 mm, Weight: 0.70 kg
- DN 1"1/2 x 1"1/4: Length: 50 mm, Width: 54 mm, Weight: 0.265 kg
- DN 2" x 1"1/2: Length: 53 mm, Width: 63 mm, Weight: 0.290 kg
These dimensions ensure compatibility with standard BSP threaded pipes, facilitating easy installation and a secure fit.
