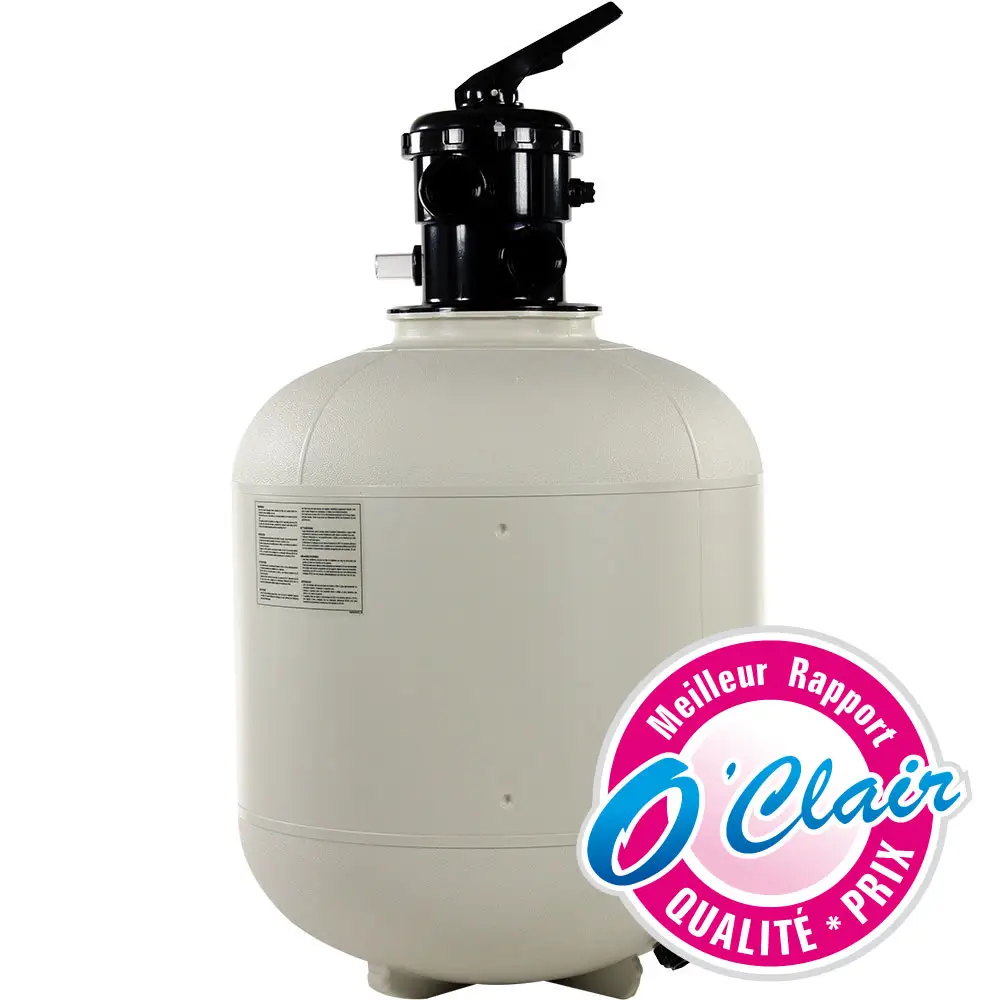

Polyclair Plus Sand Filter T500 - 9 m³/h
The Polyclair Plus sand filter is a product from the o'clair range developed to provide high filtration performance at a low price, comparable to the biggest brands.
There are 3 models available for the Polyclair Top filter: Ø400mm, Ø500mm and Ø600mm.
The filter is guaranteed for 2 years while the valve is guaranteed for 1 year.
The filter is made from premium high-density blown polyethylene. No metallic elements are present on the outside or inside the filter. This allows us to limit any risk of corrosion or rust. The base is very durable, moulded from injected polymer.
A 6-way valve is positioned on the top, allowing us to install the filter in a cramped technical room, but requires the removal of the valve for any access to the inside of the filter, and does not allow any visibility. There are designated locations for a manometer and air purge.
The drain plug is located on the lower part of the tank, for easy water drainage without the risk of losing sand.
Finally, the valve connections are 38mm (T400) and 50mm (T500 and T600)
Polyclair Plus Technical Specifications
| Model | T400 | T500 | T600 |
| Diameter (mm) | 400 | 500 | 600 |
| Height (mm) | 720 | 985 | 990 |
| Flow Rate (m³/h) | 6-8 | 10 | 14 |
| Pool Volume (m³) | 30 | 40 | 55 |
| Sand Load (kg) | 50 | 75 | 125 |
| Connections (mm) | 38.5 | 50 | 50 |
| Max Operating Pressure (kg/m²) | 2.5 |
| Max Operating Temperature | 50°C |
| Filtration Media Granulometry | 0.6 to 1.25 |
