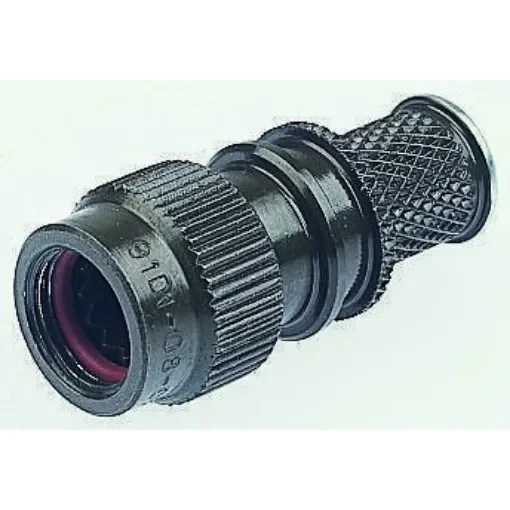

Polamco, 91Size 20 Straight Circular Connector Backshell, For Use With MIL-DTL-26482 Series I, PATT 105, PATT 603 - 91D1-20-14-1-ZB

For Use With = MIL-DTL-26482 Series I, PATT 105, PATT 603
Shell Size = 20
Body Orientation = Straight
Housing Material = Aluminium Alloy
Spring Clip Size = 3
Thread Size = UNEF 1-3/16-18
Length = 34mm
Series = 91

Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors,Series 2 fits the commercial threaded (MIL-C-5015) connectors,Series 3 fits the industrial bayonet (MIL-C-5015) connectors,Series 4 fits professional threaded (MILD38999) connectors. 91 Series Spin Coupling Backshells, Polamco. Dual purpose spin coupling backshells may be used in conjunction with heatshrink boots or spring clips (for example, stock no. 241-1519) to terminate braided cable jacketing. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of these backshells features anti-rotation teeth and a sealing 'O' ring.
