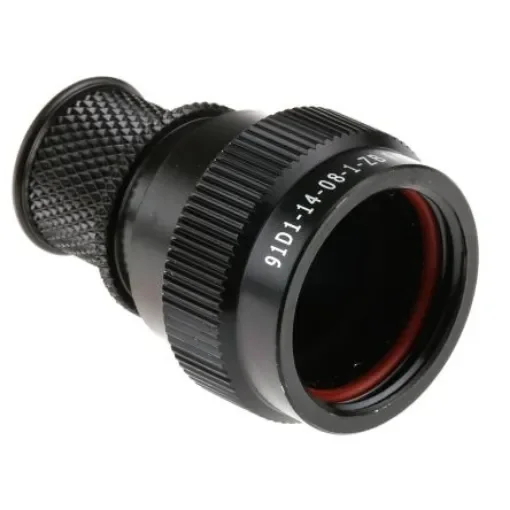

Polamco, 91Size 14 Straight Circular Connector Backshell, For Use With MIL-DTL-26482 Series I, PATT 105, PATT 603 - 91D1-14-08-1-ZB

For Use With = MIL-DTL-26482 Series I, PATT 105, PATT 603
Shell Size = 14
Body Orientation = Straight
Housing Material = Aluminium Alloy
Spring Clip Size = 2
Thread Size = UNEF 13/16-20
Length = 34mm
Series = 91

Polamco Coupling BackshellThe Polamco 91 series spin coupling backshell of size 14 is used in conjunction with heat-shrink boots or spring clips to terminate braided cable jacket. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of this backshell features anti-rotation teeth and a sealing O ring. The length of this backshell is 34mm. Note: Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors, Series 2 fits the commercial threaded (MIL-C-5015) connectors, Series 3 fits the industrial bayonet (MIL-C-5015) connectors, Series 4 fits professionally threaded (MILD38999) connectors.Features and BenefitsAluminium alloy housing with an olive drab zinc cobalt finish Cable size ranges between 12.70mm and 20.3mm Straight body orientation
