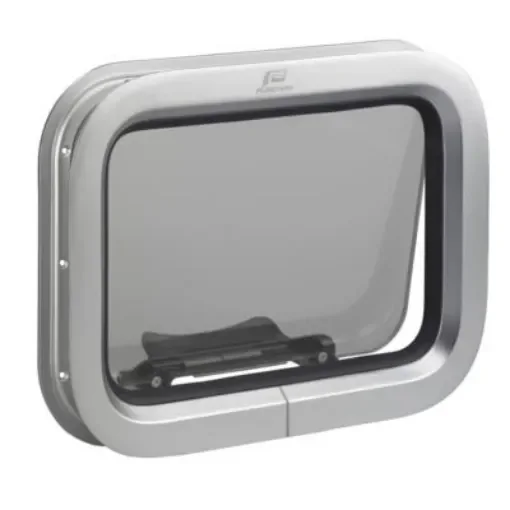

The Plastimo Opening Porthole is designed to provide excellent watertightness, superior design, and easy assembly for various applications, including boats, motorhomes, vans, and camper vans.
- Watertightness: Equipped with a double contact seal system, the first lip absorbs water, while the second ensures ultimate sealing.
- Frame Design: Features a one-piece, large-section satin-finished aluminum frame for optimal rigidity and aesthetics.
- Handle Positioning: The handle is set back from the glass, providing unobstructed visibility.
- Installation: The reversible counter-frame accommodates a wide range of wall thicknesses from 5 to 33 mm, allowing for easy installation on various surfaces, including sloped roofs.
Technical Specifications
- Materials:
- Frame: Satin-finished aluminum
- Glass: Grey acrylic
- Glass Thickness: 10 mm
- Wall Thickness Compatibility: 5 to 33 mm
- Frame Angle: 46° inclination for water drainage
- Handle Type: Ergonomic, recessed handle for one-handed operation
- Hinges: Adjustable friction hinges
Dimensions
- External Dimensions: 325 x 178 mm
- Internal Dimensions: 301 x 154 mm
- Cut-out Dimensions: 303 x 156 mm
- Radius: 56 mm
Compatibility Information
This porthole is suitable for installation on boat hulls, cockpits, roofs, and can also be used on motorhomes, vans, or camper vans.
