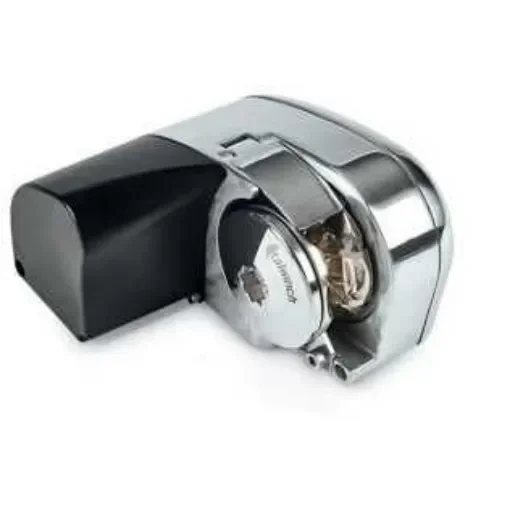

The Plastimo Horizontal Windlass with Integrated Motor is a compact and efficient anchoring solution designed for vessels ranging from 6 to 10 meters in length. Its integrated motor design allows for direct deck installation, making it ideal for boats with limited anchor locker space.
- Integrated Motor: Eliminates the need for a separate motor compartment, saving space and simplifying installation.
- Direct Deck Installation: Suitable for boats where the windlass cannot be installed inside the anchor locker.
- Complete Package: Comes equipped with a gypsy, an up/down relay box, and a sensor for chain counting.
Technical Specifications:
- Power Consumption: 60 A
- Chain Diameter: 6 mm
- Voltage: 12 V
- Hauling Speed: 25 m/min
- Lift Force: 90 kg
- Pull-Out Force: 670 kg
- Drum: None
- Material: Constructed with a durable anodized aluminum body and stainless steel 316 L AISI components, including the gypsy.
- Compatibility: Designed to accommodate ISO 4565 calibrated chains and DIN 766 chains, suitable for use with a 3-strand rope.
