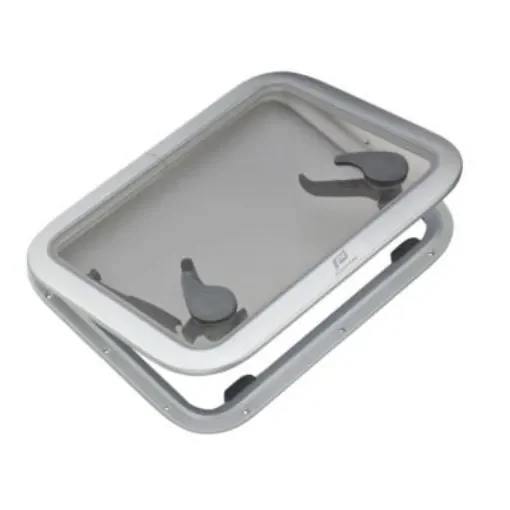

Plastimo Deck Panels are designed to provide optimal waterproofing, ease of installation, and aesthetic appeal for boating applications. These panels are suitable for standard production boats and can also be adapted for use on motorhomes, vans, or camper vans.
- Waterproof Design: Ensures a watertight seal, making them ideal for marine environments.
- Aesthetic Appeal: Features a satin-finish aluminum frame with a grey acrylic glass window, offering a sleek and modern look.
- Invisible Hinges: Provides a clean and unobtrusive appearance.
- Adjustable Opening Height: Equipped with telescopic compasses that allow the panel to open up to 19 mm, accommodating various deck types, including teak decks.
- Interior Locking Mechanism: Handles with effective locking mechanisms prevent unauthorized opening from the outside.
- Low Profile: The panel's low height (15 mm when closed) minimizes obstruction on the deck and allows for clearance under certain barriers when installed on roofs.
Technical Specifications
- Materials:
- Frame: Satin-finish aluminum
- Glass: 10 mm thick grey acrylic
- Dimensions:
- External Dimensions: Vary by model (e.g., 271 x 271 mm for size 00)
- Internal Dimensions: Vary by model (e.g., 209 x 209 mm for size 00)
- Cutout Dimensions: Vary by model (e.g., 211 x 211 mm for size 00)
- Radius: 42.5 mm
- Mounting Height Below Deck: 15 mm
- Weight: Varies by model (e.g., 2.1 kg for size 00)
Compatibility Information
These deck panels are compatible with standard production boat sizes and can be adapted for use on motorhomes, vans, or camper vans. They are CE certified for coastal and offshore use and comply with European regulations for onboard installation, making them suitable for zones II, III, and IV, including deck, roof, and cockpit areas. Certain sizes (44, 60, and 70) are approved for use as escape hatches in zone IIB.
