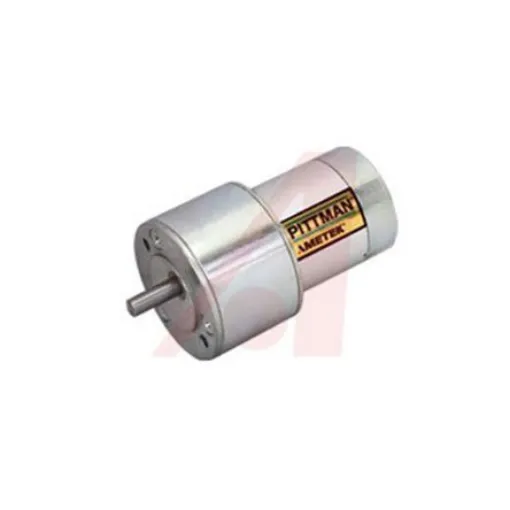

PITTMAN AMETEK TIP Brushed Geared DC Geared Motor, 9.98 W, 24 V dc, 96 Ncm, 82 rpm - GM9213S435
High-performance 24V brushed geared DC motor with 96 Ncm torque and 82 rpm speed.
Manufacturer part number: GM9213S435
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
DC Motor Type = Brushed Geared
Power Rating = 9.98 W
Output Speed = 82 rpm
Maximum Output Torque = 96 Ncm
Gearhead Type = Spur
Gear Ratio = 65.5:1
Current Rating = 2.88 A
Core Construction = Permanent Magnet
GM9000 LO-COG Series. These revolutionary Pittman Ametek DC Gear motors offer a smooth, quiet operation and long life. An innovative cartridge brush assembly reduces audible and electrical noise and significantly improves brush life. By maintaining optimum brush force throughout the life of the motor, it ensures a longer life and excellent suitability for your application. All models are highly reliable and excellent quality. 2 Pole Permanent Magnet Stators Are Constructed of Ceramic Magnets Enclosed in Heavy-Gauge Steel Return Rings Diamond Turned Commutators Ensure Maximum Brush Life Standard Copper Graphite Brushes 12 V dc and 24 V dc available
