- Key Features:

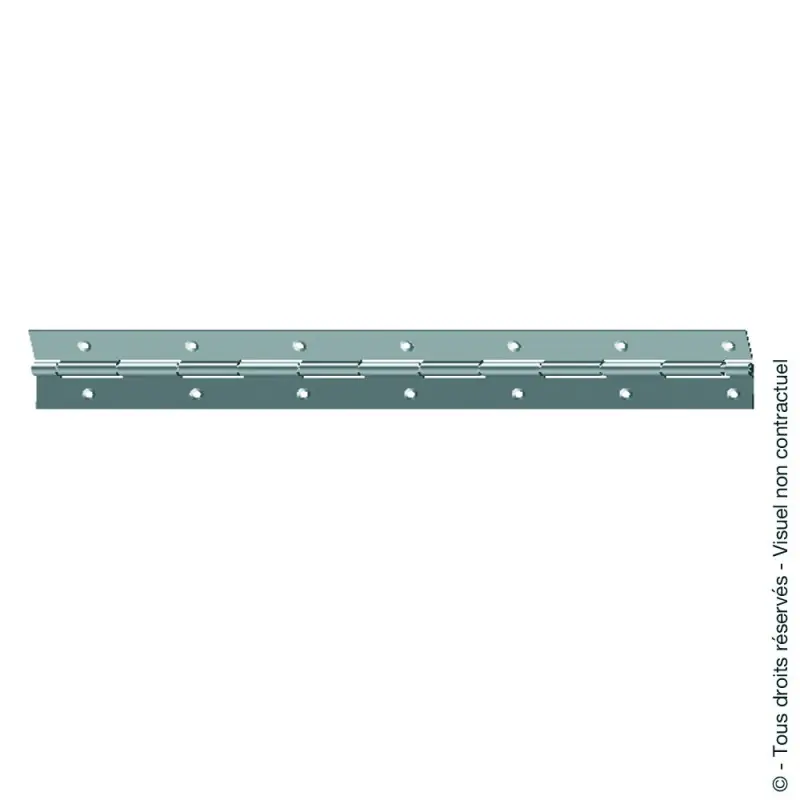

- Continuous piano hinge design for full-length support
- Rolled knuckle construction for enhanced durability
- Crimped knuckles at both ends to secure the hinge pin
- Satin finish for a sleek appearance
- Technical Specifications:
- Material: 304 Stainless Steel
- Finish: Satin
- Load Capacity: 47 kg
- Compliance: RoHS 3
- Materials:
Constructed from high-quality 304 stainless steel for corrosion resistance and strength
- Dimensions:
- Length: 1,000 mm
- Width: 25 mm
- Thickness: 1 mm
- Pin Diameter: 2 mm
- Compatibility Information:
Suitable for various applications, including cabinetry, doors, and marine environments
- Additional Details:
- Designed to provide a 270° opening angle
- Easy to align and mount
- Stronger than traditional butt hinges
- Supports the full length of the door or lid
