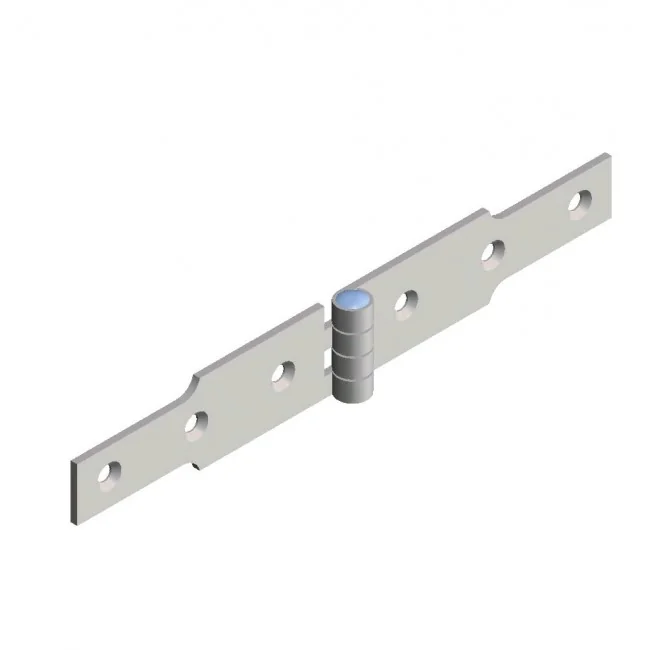

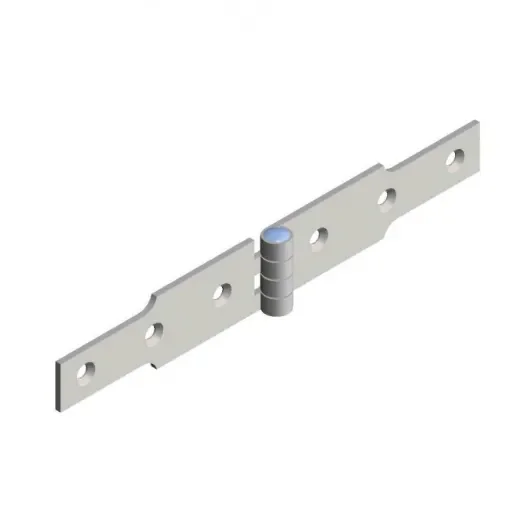

The Stainless Steel Rolled Knuckle Hinge is a durable and corrosion-resistant hinge designed for various applications, including doors, windows, and furniture. Its rolled knuckle design ensures a secure and smooth pivoting motion.
- Material: Constructed from high-quality stainless steel, offering excellent corrosion resistance and longevity.
- Design: Rolled knuckle design for enhanced strength and a smooth pivoting action.
- Finish: Available in raw, electro-polished, or galvanised finishes to suit different aesthetic preferences and environmental conditions.
Technical Specifications
- Width Options: Available in 30 mm, 32 mm, and 40 mm widths.
- Length Options: Lengths range from 1,000 mm to 2,040 mm, with custom lengths available upon request.
- Thickness: Thicknesses vary from 0.8 mm to 2 mm, depending on the specific model.
- Pin Material: Standard models feature a steel pin; stainless steel pins are available for enhanced corrosion resistance.
- Opening Angle: Provides a full 270° opening angle for maximum accessibility.
- Drilling Options: Available in drilled or undrilled versions to accommodate different installation requirements.
Materials
- Hinge Body: Stainless steel, known for its high corrosion resistance and durability.
- Pin: Typically steel; stainless steel pins are available for enhanced corrosion resistance.
Dimensions
- Width: 30 mm, 32 mm, or 40 mm, depending on the model.
- Length: Customizable lengths ranging from 1,000 mm to 2,040 mm.
- Thickness: Options include 0.8 mm, 1 mm, 1.2 mm, and 2 mm, based on the specific model.
Compatibility Information
Suitable for a wide range of applications, including doors, windows, and furniture. The hinge's design allows for easy installation on various materials, including wood, metal, and composite surfaces. Ensure that the hinge width and thickness are compatible with the door or window dimensions for optimal performance.
